9 Dies 200g Chlorine 3inch TCCA Rotary Tablet Press Pharma Compression Machine

Place of Origin China
Brand Name Infectious
Certification CE
Model Number TP-01
Minimum Order Quantity 1 sets
Price $40,000.00-50,000 Sets
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20000 Sets Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Delivery 40 Working Days Max Diameter 80mm
Machine Weight 6000ton Transport Package Standard Exporting Packing
High Light

200g pharma compression machine


200g pharmaceutical tablet making machine


chlorine pharma compression machine

Leave a Message
Product Description

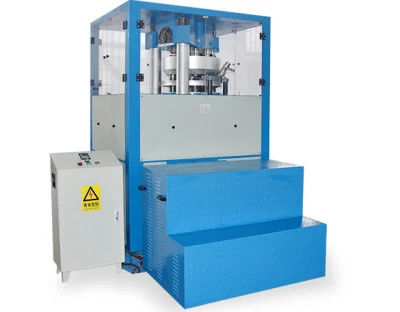

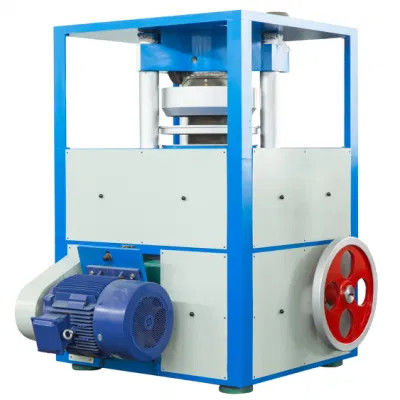

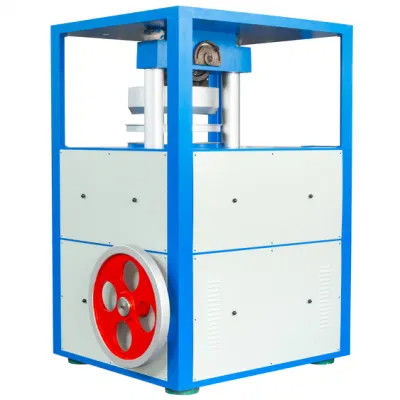

9 dies 6500kg Machine Weight 200g Chlorine 3inch TCCA Rotary Tablet Press
Product Description
salt powder compaction machine
large rotary tablet press our model ZP80-9, max pressure is 80T, it has pre-pressure with pre-pressure wheel. Currently 80T still is the highest pressure that rotary tablet press machine can reach in china mainland.
Tablet hardness our ZP80-9 have reached is 120-300kgf/c, which is the test result from Nanning chemical group and Hebei Jiheng chemical group. They gave us the qualified report after debugging. These are best prove for our machine ZP80-9 pressure.
This kind machine is not cheap. Sincerely suggest and warmly invite you to have field trips to china before ordering. We came across following feedbacks since last year that some people tried to copy our model ZP80-9 machine, they equiped wrong speed reducers for machines, but used 100T rotary to mislead buyers, they exaggerate and false propaganda, actually their machines could not to work continuously even 2 hours . Be careful if you come across.
ZP80-9A have been used to produce Tri-chlor/TCCA tablets with an inner hole, 100g 200g. Such annular TCCA tablets with hole are in production now by ZP80-9A for Japan Factory.
ZP80-9A is used to press any granular material into large tablets (eg: Dia=76mm) of round or non-round shape. It was specially developed for large TCCA production in 100g 200g by our company 6 years ago.
ZP80-9A large rotary tablet press machine production capacity reaches 4000 pcs/h in 100g 200g chlorine tablet, which is ten times than traditional hydraulic tablet press machines. It is called "Power TCCA Machine"by TCCA producers with its good speed and excellent production capacity. We also think out many solutions to protect machine from corrosion. ZP80-9A have been used to produce 3-inch Chlorine Pool Tablets/ 3 Inch Tri-Chlor Chlorine Tablets/swimming pool chlorine tablets.
* 9 pcs/ 100g 200g TCCA/chlorine/tri-chlor/swimming pool chlorine tablets
output in each circle, 4000pcs/h.
* with pre-pressure wheel, has pre-pressure which guarantee the quality of tablets.
* ZP80-9A especially can produce 100g 200g TCCA/swimming pool chlorine tablets with an inner hole.
* Moulds are made of Titanium Alloy material.
* Other parts connecting with material are made of Titanium material.
* Transparent window is made of plexiglass, prevent powder from cross-contamination
* All gearing parts are fixed in the tablet machine inner, avoild it of corrosion.
* With a frequency protection device, if pressure is too large, it can be automatically shut down to protect the body from damage.
* It is our patent product. In china, traders also have resold it to their foreign clients.
Who has used it?
(1)In china, Hebei Jiheng Chemical Group, the largest TCCA production company in asia, has bought more than 5 sets from us. Its yearly production is more than 20000tons. With stable supply ability and good finished chlorine tablets, it has been the designated supplier for USA Lonza.
(2)Exporting, for example: It has arrived Brazil & Japan


Model XY80-9A
Dies 9 sets
Max pressure 800 Kn
Dia of Tablet 50 --80 mm
Max Depth of Fill 60 mm
Thickness of Tablet 25-31mm
Turret Speed 1--10 r/min
Max Production Capacity 1-5400 pcs/h(adjustable)
Motor 30 kw 980 r/min 380 v / 50 hz
Overall Size 1430*1280*2120 mm
Net Weight 6000kg

9 Dies 200g Chlorine 3inch TCCA Rotary Tablet Press Pharma Compression Machine 09 Dies 200g Chlorine 3inch TCCA Rotary Tablet Press Pharma Compression Machine 19 Dies 200g Chlorine 3inch TCCA Rotary Tablet Press Pharma Compression Machine 2

Company introduction
Zhejiang Xingyi Technology Co., Ltd is a professional machinery equipment manufacturer located in Henan Province, China. The company specializes in the production, processing and sales of food machinery, agricultural machinery and other machinery. We mainly cover the production scope: snack food processing machinery, candy processing machinery, fruit and vegetable processing machinery, printers, packaging machinery, water well drilling machine, various peeling machines.
The company covers an area of 10,000 square meters, with fixed assets of 50 million yuan. There are more than 100 employees, more than 30 technical personnel, and more than 100 sets of various production equipment. Equipment includes: large press machine, digital lathe, digital wire electrode cutting equipment, all kinds of processing machinery and equipment. The company has national patents and proprietary technology, with independent research and development capabilities.
After-sales Service
1 24 hour communication service
2 Fast logistics will provide you a smooth delivery service
3 One-year warranty and lifetime technical support
4 New design or product recommendation
5 Attend international Fair to negotiate with customer face to face
6 offer official invitation if you come to China
7 Reception service,help you to book good hotel
Q1 :What's your company after-sales service?
A1: We will check three times before shipment to ensure that the machine itself has no problems.Offering the best quality machine&the best service to our customers is the mission of our enterprise.
Q2 :Any warranty ?
A2:One year warranty. Frankly speaking, the quality of our machines is very stable. The machine will be checked three times before leaving the factory to ensure that you can receive the machine in the best condition. If you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ?
A3:We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4: Differences from other brands in China ?
A4:We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement.
We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
Q5 :Can I print my logo on the machine ?
A5: Yes, sure. We can provide professional customized logo services for customers.
Q6 :How does your factory do regarding quality control?
A6: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
