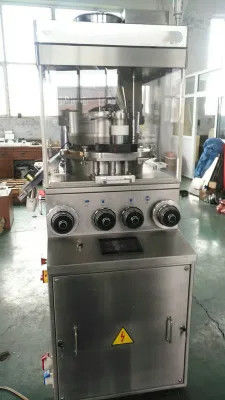

Rotary Pharmaceutical Tablet Press 7.5kw Powder Tablet Press Stainless Steel
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDimension | 1200*950*1850 | Weight | 1200kg |
---|---|---|---|
Power | 7.5kw | Upper And Lower Punch Length | 133.6 |
Material | Stainless Steel | Turret Speed(r/m) | 11-87 |
High Light | rotary pharmaceutical tablet press,7.5kw powder tablet press,pharmaceutical tablet press 7.5kw |
Rotary Tablet Press Machine for Pharmaceutical Industry 10% off
Product Description
GZPB series automatic high-speed rotary tablet press is the second generation of the company's latest product. It concentrates on the technical features of the domestic automatic high-speed tablet press and has made significant improvements in machine structure and operation control. The machine structure adopts a universal seat, a universal shape, and can replace the punching disc body, thereby realizing the interchange of one machine and multiple types. Industrial PLC automatic control is adopted in operation control, leaving a large development space.
Usage:
This machine is a fully automatic rotary tablet press machine. It is a device for making various granular raw materials into tablets in the pharmaceutical, chemical, food, electronics and other industries.
1.2 This machine is suitable for the production of various round, shaped tablets, sugar tablets, calcium tablets, etc.; but not for semi-solid, moist powder and powder compaction (≥100 mesh).
Technical characteristics:
Adopt GMP structure
unframed large window with 20mm thick safety glass
single side compression
unilateral discharge
Fully enclosed automatic feeding
forced feeding
Main pressure 8 tons
Pre-pressure 2 tons
Feeding motor frequency control
computer control tablet weight
Overload, the punch is too tight, the lubrication is insufficient
Dies | 16 | 23 | 26 | 28 | 32 | 40 |
Max.main pressure(kn) | 100 | 80 | 100 | 80 | 80 | 80 |
Max. tablet diameter(mm) | 25 | 16 | 25 | 13 | 16 | 13 |
Max.filling depth(mm) | 20 | 16 | 20 | 16 | 16 | 16 |
Turret speed(r/m) | 11-87 | 11-105 | 11-87 | 11-105 | 11-105 | 11-105 |
Production capacity(p/h) | 30000-91000 | 30000-144000 | 30000-160000 | 30000-185000 | 30000-210000 | 30000-260000 |
Upper and lower punch length:mm | 133.6 | 133.6 | 133.6 | 133.6 | 133.6 | 133.6 |
Mold diameter(mm) | 38.1 | 30.16 | 38.1 | 24.01 | 30.16 | 24.01 |
Mold thickness(mm) | 23.81 | 22.22 | 22.81 | 22.22 | 22.22 | 22.22 |
Power supply | 7.5kw,3Ph,380V | 5.5kw,3Ph,380V | 11,3Ph,380V | 4kw,3Ph,380V | 7.5kw,3Ph,380V | 7.5kw,3Ph,380V |
Overall dimension:mm | 1200*950*1850 | |||||
Weight:kg | 1200 | 1400 |
