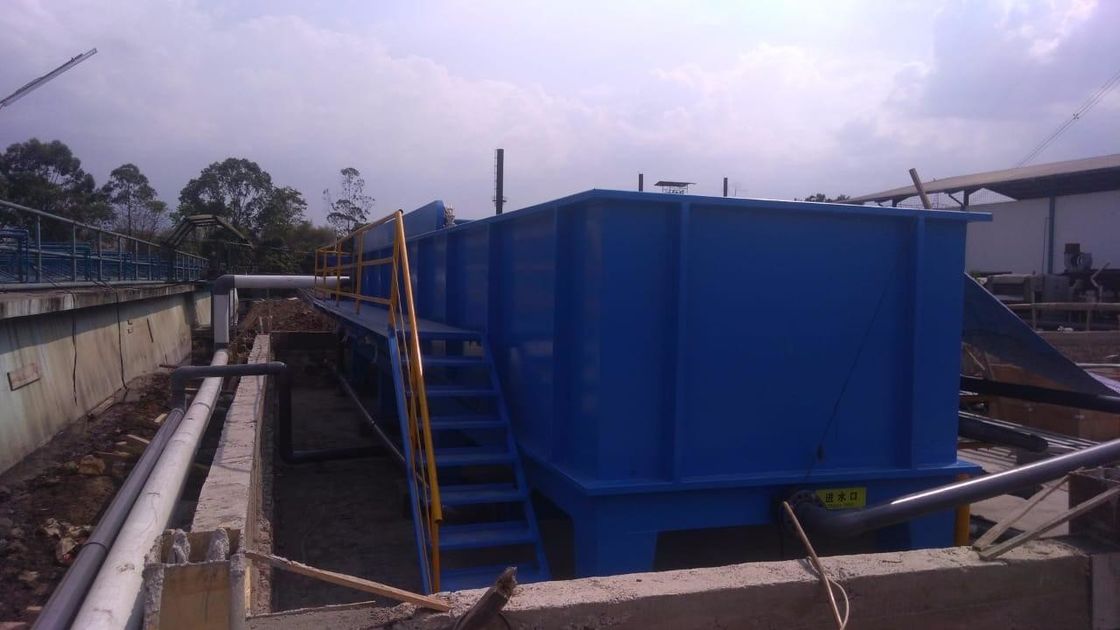

Top-rating water and wastewater treatment plant equipment daf sewage waste water treatment system
Product Description
Working Principle
The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to
dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the
circumstance of sudden release, the air dissolved in water will be dissolve out and form vast micro bubble group, which will be
fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding
medicine, the ascending micro bubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to
water surface, thus reach the purpose of removing SS and Cod etc.
Main Feature
(1)Dissolved air pump edge bibulous the edge is inspiratory, pump pressurized mix within, gas to liquid efficient dissolving, small
bubbles than 30 um.
(2) Low voltage operation, the dissolved gas efficiency is as high as 99%, release rate as high as 99%.
(3)Tiny bubbles and suspended particles of efficient adsorption, improve the SS remove effect.
(4) Dissolved gas water dissolving efficiency 80-100%, than traditional dissolved gas floating high efficiency three times.
(5)Pressure-capacity curve smooth, easy to achieve automatic control, easy to operate, easy maintenance, low noise.
| Model |
Disposal
capacity |
Equipment size (m) |
Dissolved air vessel size |
Motor power |
Equipment total weight |
| (m3/h) |
Length |
Width |
Height |
((mm)) |
(Kw) |
(Kg) |
| XY-1 |
1 |
1.0 |
0.8 |
1.0 |
Φ200xh800 |
1.5 |
300 |
| XY-3 |
3 |
1.7 |
1.2 |
2.0 |
Φ300xh1000 |
2.2 |
800 |
| XY-5 |
5 |
2.5 |
1.5 |
2.0 |
Φ300xh1500 |
2.2 |
1200 |
| XY-10 |
10 |
4.6 |
1.7 |
2.0 |
Φ400xh3000 |
4.0 |
2000 |
| XY-20 |
20 |
6.0 |
2.0 |
2.0 |
Φ400xh3000 |
4.0 |
3200 |
| XY-30 |
30 |
7.2 |
2.0 |
2.1 |
Φ500xh3000 |
5.5 |
4500 |
| XY-40 |
40 |
8.3 |
2.8 |
2.2 |
Φ500xh3000 |
5.5 |
6000 |
| XY-50 |
50 |
9.3 |
3.2 |
2.2 |
Φ600xh3000 |
7.5 |
7100 |
| XY-60 |
60 |
10.3 |
3.2 |
2.2 |
Φ600xh3000 |
7.5 |
8500 |
| XY-80 |
80 |
11.2 |
3.5 |
2.5 |
Φ800xh3000 |
11 |
9000 |
| XY-100 |
100 |
12.5 |
3.9 |
2.5 |
Φ800xh3000 |
15 |
11000 |
