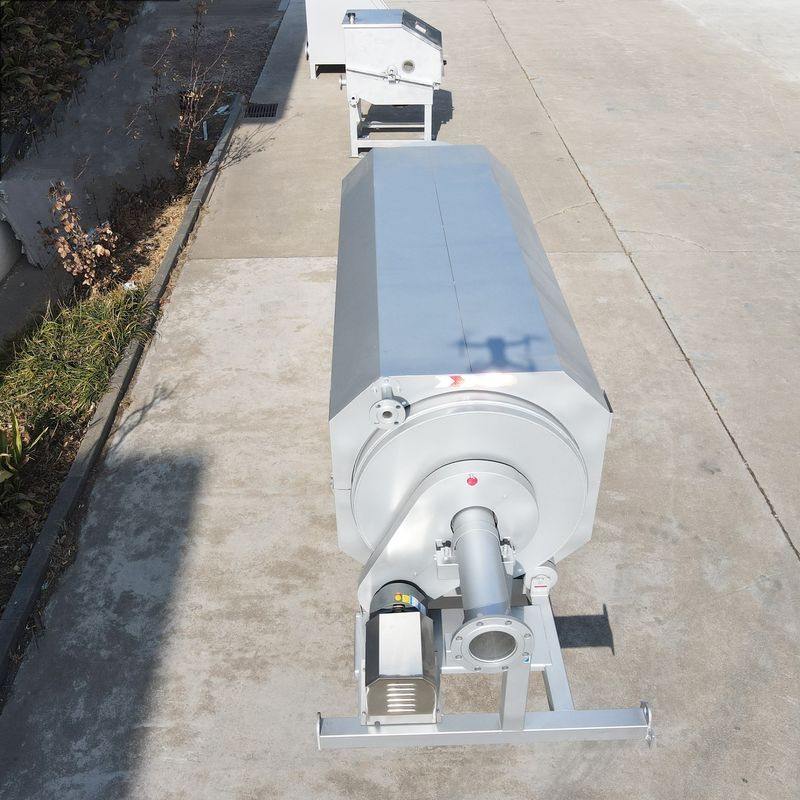

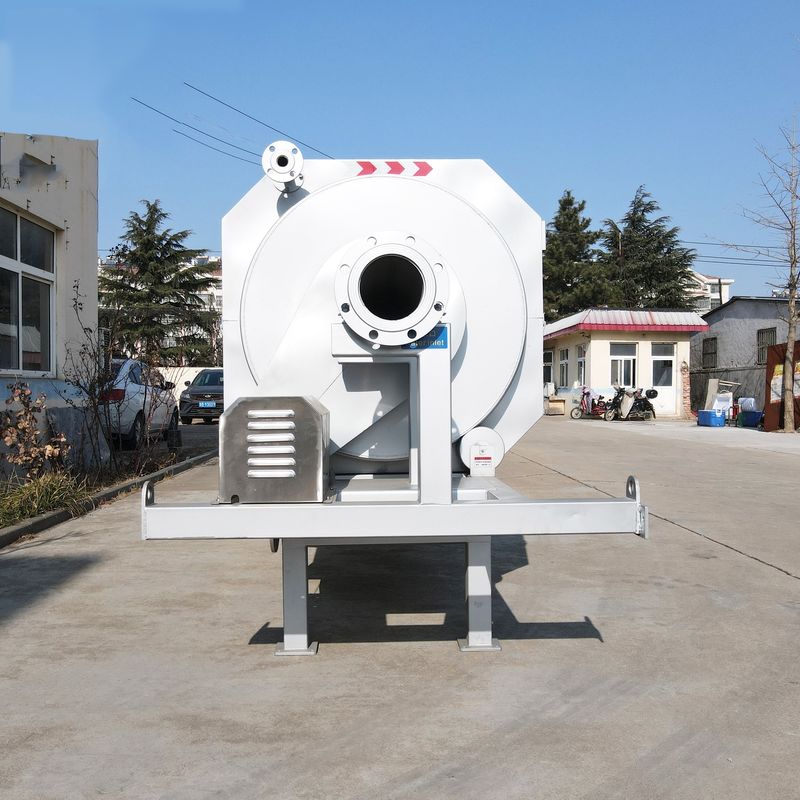

Internal Feed Rotary Drum Filter Screen Sewage Treatment Equipment
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xApplicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Construction Works , Energy & Mining, Advertising Company | Warranty Of Core Components | 1 Year |
---|---|---|---|
Core Components | Pump, Bearing | Productivity | 2000L/Hour |
Weight (KG) | 200 Kg | Material | Stainless Steel 304/316 |
Power | 0.5~5.5 | ||
High Light | Internal Feed Rotary Drum Filter Screen,Filter Screen Sewage Treatment Equipment |
Best Selling high efficiency Sewage Treatment Equipment Internal Feed Rotary Drum Filter Screen for wastewater treatment plant
Product Description
Internal water drum microstrainer
It is an indispensable equipment in the pretreatment stage of wastewater treatment. According to the principle of operation, it can be divided into step-by-step screen, rotary screen, drum screen, static screen and so on. The drum screen is divided into two types according to the way of inlet water, which are external water inlet and internal water inlet. I.Introduction The waste water enters the overflow weir water distributor from the water pipe, and after a short period of steady flow, the effluent evenly flows out from the outlet, and is distributed on the filter screen which is rotating in the opposite direction. The water flow and the inner wall of the filter cylinder generate a relative shear movement. The water flow efficiency is high, and the solid is separated by the intercepting flow. The filtrate ran away from the tank. The filter barrel of this machine is equipped with a flushing water pipe, and the flushing water pressure (3kg/cm2) is sprayed in a fan-shaped way to rinse and dredge the filter net, so as to ensure that the filter net always maintains a good filtering ability. For drum screen, usually the particle size is relatively small, some hair and other fine particles can be selected with a drum-type mechanical screen, its space can be between 0.3-1mm.
Product Paramenters
Model | XY-600 | XY-800 | XY-1000 | XY-1100 | XY-1200 | XY-1400 |
Fitlering area(m2) | 5 | 7 | 9 | 11 | 13 | 185 |
Filtering mesh | 60-250 | 60-250 | 60-250 | 60-250 | 60-250 | 60-250 |
Water inlet flow m3/h | 50-100 | 82-150 | 100-200 | 120-240 | 150-300 | 170-380 |
filtering drum rotating speed | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 |
Washing water pressure | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 |
Motor power kw | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
filtering diameter | *600 | *800 | *1000 | *1000 | *1200 | *1400 |
filtering drum length | 1500 | 2000 | 2500 | 2500 | 2500 | 30000 |
weight | 1.5 | 2 | 2.5 | 3 | 3.5 | 4.0 |
