Stainless Steel Multifunction Noodle Maker 100-260kg/h Production Line 380v/50hz
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVoltage | 380v/50hz | Power | 70kw |
---|---|---|---|
Dimension(L*W*H) | 19*2.0*2.2m | Name | Pasta Maraconi Production Line |
Function | Multifunction | Usage | Food Processing Industry |
Raw Material | Rice Power, Corn Starch, Potato Power And Others | Machine Material | Stainless Steel |
Production Capacity | 100-260kg/h | ||
High Light | multifunction noodle maker,multifunction pasta machine,380v noodle maker |
Full-automatic High Productitive Pasta Extruder Maraconi Shell Noodles Fusilli Machine Production Line
Products Description
Mixer
1.Output: 40-50KG/T
2.Products contact part is stainless steel
3,Mixing drum has the stirring blade,1440r/min.
4,Baffle type is adopted at the discharge hole
5,The mixing drum has the intake.1.Output: 40-50KG/T
2.Products contact part is stainless steel
3,Mixing drum has the stirring blade,1440r/min.

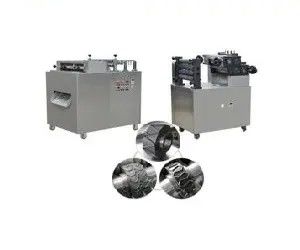

Cutter
1. Some kinds of pasta need the cutter, some kinds of products can be cut with the extruder.
2. Output with the extruder.
3. The oblique section need use the cutter, the plane section can be cut on the extruder directly.

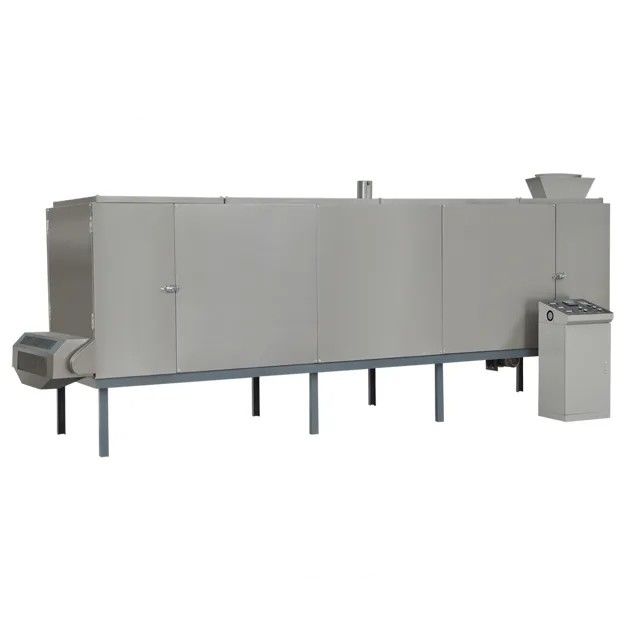

Dryer
1. It is composed of oven main engine, control cabinet and drawer.
2. Double pitch roller chain and sprocket drive, no dead point, stable operation.
3. The insulation board is made of stainless steel, and there is insulation material in the middle of the guard board.
4. Tunnel drying, adjustable operation speed of mesh belt, to adjust the drying time of products in the oven, and equipped with accurate temperature control device, easy to adjust .
Cooling Conveyor
1,Stainless steel mesh belt.
2,Support system and protecting plate are made by stainless steel
3,Four fans forced cooling.
4,The cooled products are convenient for packing.

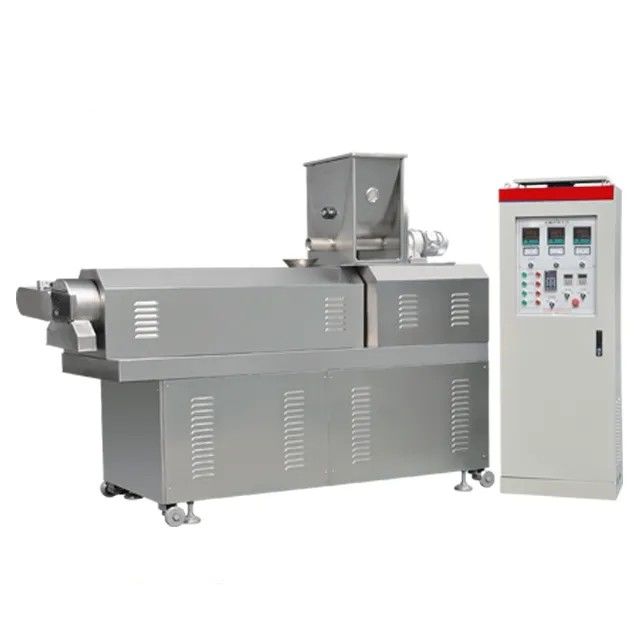

Name |
Single Screw Extruder |
Material |
Stainless Steel |
Power |
56KW |
Voltage |
380V/50HZ |
Output |
100-150KG/H |
Size |
3200*1100*1900MM |
Auxiliary Equipment Parameter
Name | Mixer | Spiral Feeder | Dryer | Hoister | Cooling Caonveyor |
Installed Power | 4KW | 0.75KW | 75KW | 0.2KW | 1.48KW |
Real Power | 3KW | 0.3-0.5KW | 35KW | 0.15KW | 0.7KW |
Size | 1300x850x1200mm | 3100*590*2200mm | 8300*1300*1700mm | 1879x700x1460mm | 5400x1200x1400m |
