100W Mopa JPT Color 3d Dynamic Focusing Laser Marking Machine

Place of Origin China
Brand Name Infectious
Certification CE
Model Number MM-01
Minimum Order Quantity 1 sets
Price $2,000.00 Sets
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20000 Sets Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition New Weight (KG) 70 KG
Key Selling Points Easy To Operate Warranty 3 Years
Applicable Industries Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C Marking Area 200mm*200mm
Core Components Laser Head
High Light

3d Dynamic Focusing Laser Marking Machine


100W Laser Marking Machine

Leave a Message
Product Description

100W Mopa JPT Color 3d dynamic Fiber Laser Marking Machine​

Product Description


Fiber laser marking machine applied Industries

Curved surface marking:


In the traditional 2D marking machine, the workpiece must be placed on the same plane, and the processing surface must also be on the same plane, in order to achieve the marking once formed, and the surface marking cannot be completed. The 3D laser marking machine can quickly change the laser focal length and laser beam orientation, and can achieve curved surface marking that cannot be done in 2D.


Deep carving:


The traditional 2D marking has inherent defects when deep carving the object surface. As the laser focus moves upward during the engraving process, the laser energy acting on the actual surface of the object will drop sharply, which seriously affects the effect and efficiency of deep engraving. Therefore, it is necessary to move the lifting table at a specific height every specific time during the engraving process to ensure the laser surface gathering effect.


The 3D laser marking machine has greatly reduced the surface flatness requirements of the processed objects. In the process of deep carving, it not only ensures the effect, but also improves the efficiency, and the processable effect is more abundant.


The 3D laser marking machine adopts the front focusing optical form and uses larger X and Y axis deflection lenses, so it can allow a larger transmitted laser spot, better focusing accuracy and better energy effect; 3D laser marking machine compared with the 2d laser marking machine, the marking scale can be larger when gathering precision operations. The 3D laser marking machine can achieve one-time marking on the cylinder within a specific arc, which greatly improves the processing power.


In the industrial production process, the appearance of many parts is irregular, and the height of some parts is quite different. 2D marking processing is difficult to meet the needs. The advantages of 3D laser marking will gradually become more prominent.


Marking Materials

Fiber lasers can be used for a wide variety of applications, from industrial traceability to branding, on materials such as steel, copper, aluminum, plastic, ceramic, and brass.


Fiber laser marking machine parameter
Item Core parameters Configurable parameters
Engraving area Applicable material laser source power
1 200x200mm Metal/ plastic/ Crystal 50w 60w 80w 100w
2 600x600mm
Related keywords fiber laser marking machine, laser marking machine, metal laser marking machine, cnc fiber laser marking machine, laser marker
Laser Wavelength 1064nm
Minimum Line Width 0.015mm
Minimum Character 0.2mm
Repeated Precision 0.2mm
Software 3D lenmark
Life-span of Fiber Laser Module 3D lenmark
Beam Quality M2 <1.6
Focus Spot Diameter <0.01mm
System Operation Environment XP/ Win7/Win8 etc
Cooling Mode Air cooling--Built-in
Temperature of Operation Environment 15℃~35℃
Power Stability (8h) <±1.5%rms
Voltage 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH
Power Requirement <500W
Computer Requested There will be one PC with the machine
Dimension (L*W*H) 900mm*880mm*1560mm
Package Size 980mm*950mm*1650mm
Gross Weight 70KG
Net Weight 60KG
Optional (Not free of charge) Rotary Device, Moving Table, other customized Automatic Matching System

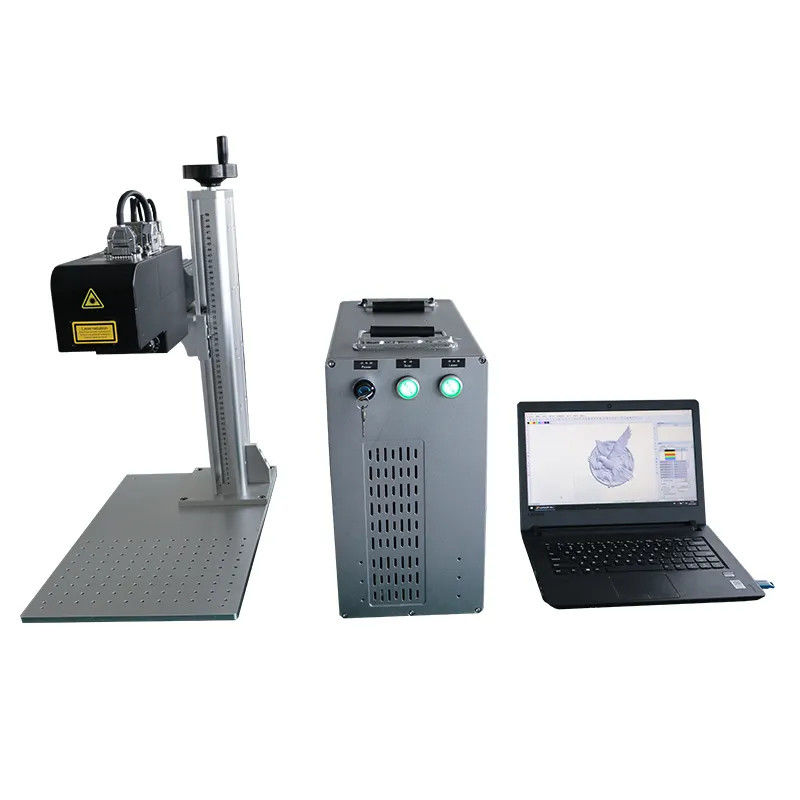

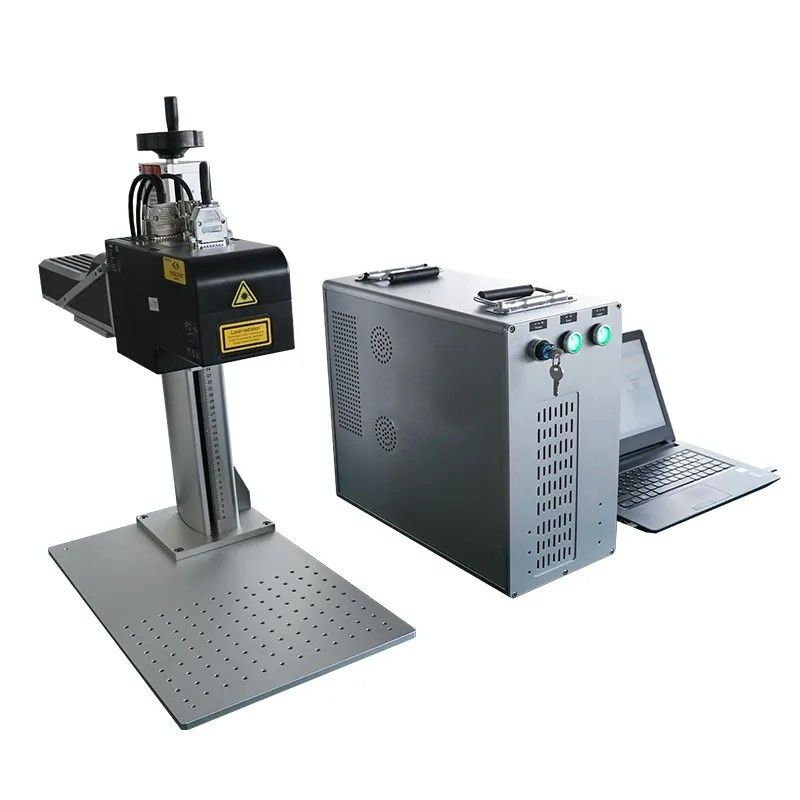

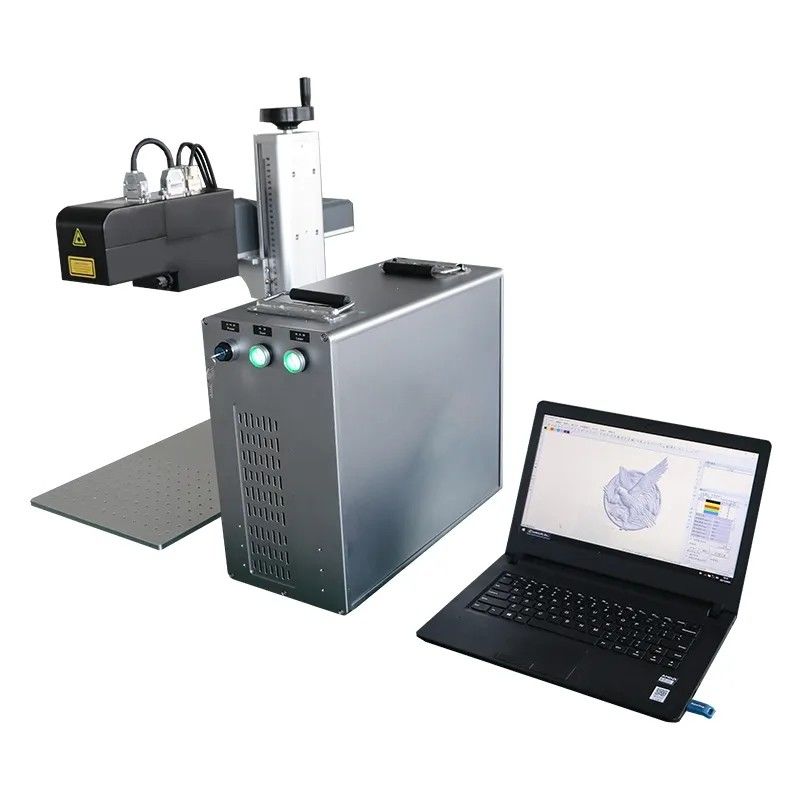

100W Mopa JPT Color 3d Dynamic Focusing Laser Marking Machine 0100W Mopa JPT Color 3d Dynamic Focusing Laser Marking Machine 1

Company introduction
Zhejiang Xingyi Technology Co., Ltd is a professional machinery equipment manufacturer located in Henan Province, China. The company specializes in the production, processing and sales of food machinery, agricultural machinery and other machinery. We mainly cover the production scope: snack food processing machinery, candy processing machinery, fruit and vegetable processing machinery, printers, packaging machinery, water well drilling machine, various peeling machines.
The company covers an area of 10,000 square meters, with fixed assets of 50 million yuan. There are more than 100 employees, more than 30 technical personnel, and more than 100 sets of various production equipment. Equipment includes: large press machine, digital lathe, digital wire electrode cutting equipment, all kinds of processing machinery and equipment. The company has national patents and proprietary technology, with independent research and development capabilities.
After-sales Service
1 24 hour communication service
2 Fast logistics will provide you a smooth delivery service
3 One-year warranty and lifetime technical support
4 New design or product recommendation
5 Attend international Fair to negotiate with customer face to face
6 offer official invitation if you come to China
7 Reception service,help you to book good hotel
Q1 :What's your company after-sales service?
A1: We will check three times before shipment to ensure that the machine itself has no problems.Offering the best quality machine&the best service to our customers is the mission of our enterprise.
Q2 :Any warranty ?
A2:One year warranty. Frankly speaking, the quality of our machines is very stable. The machine will be checked three times before leaving the factory to ensure that you can receive the machine in the best condition. If you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ?
A3:We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4: Differences from other brands in China ?
A4:We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement.
We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
Q5 :Can I print my logo on the machine ?
A5: Yes, sure. We can provide professional customized logo services for customers.
Q6 :How does your factory do regarding quality control?
A6: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
