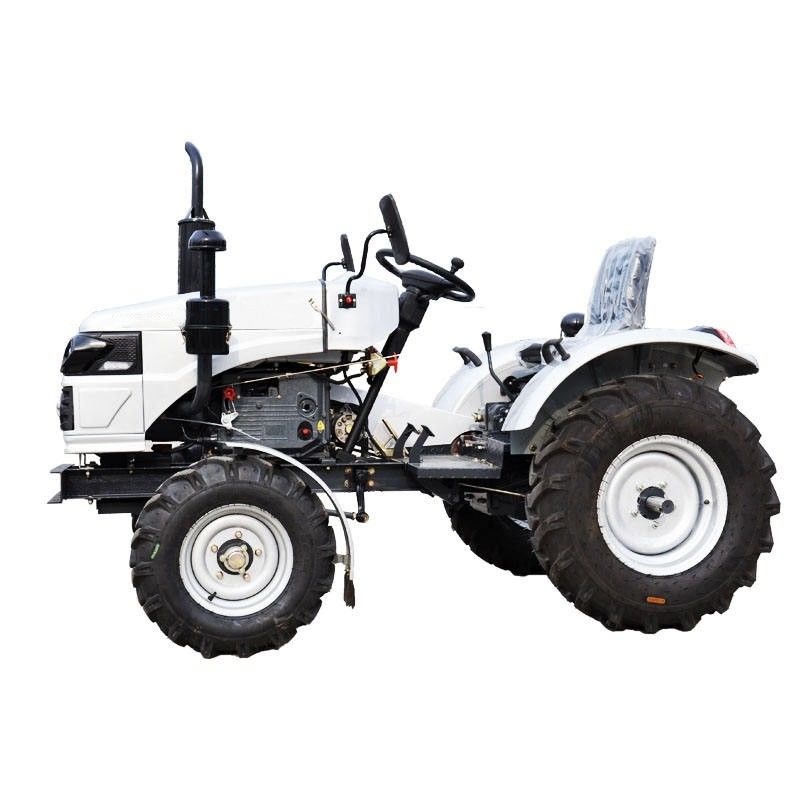

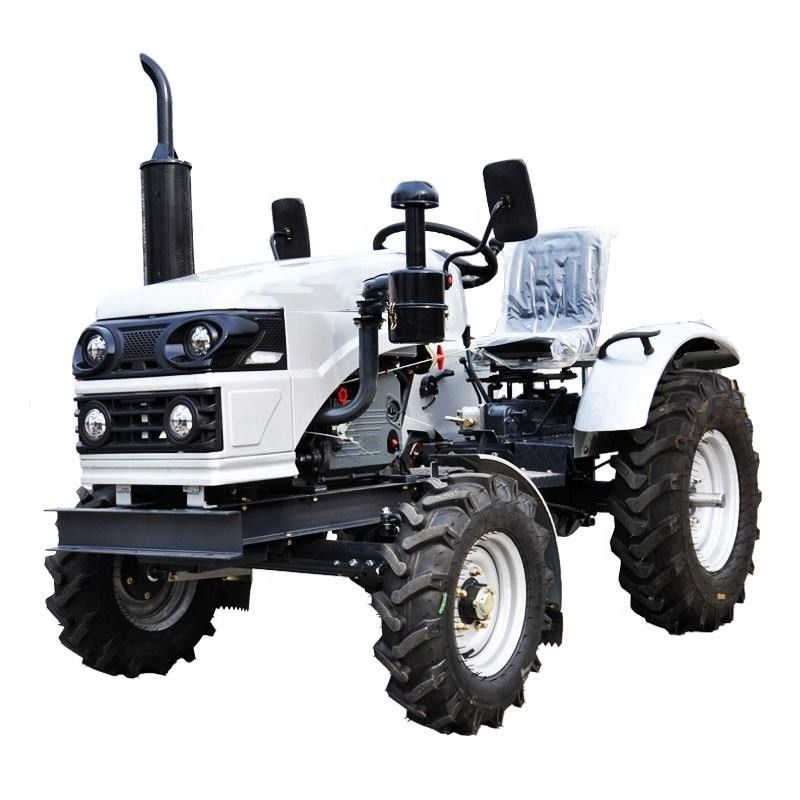

2WD Farm Tractor 12hp-24hp With Belt Drive 4 Stroke Water Cooling Diesel Engine

Place of Origin China
Brand Name Infectious
Certification CE
Model Number TT-01
Minimum Order Quantity 1 sets
Price $4980 Sets
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20000 Sets Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Applicable Industries Farms, Retail Weight 750 KG
By Wheel 2WD Usage Farm Tractor
Drive Type Belt Drive Certificate Other
Engine Type 4 Stroke Water Cooling Diesel Starting Method Electricity
High Light

farm tractor


tractor 12hp


2wd agricultural tractors

Leave a Message
Product Description

12hp-24hp mini small electric farm agricultural tractor with implements cultivator pto power
Product description


* Plowing land, in particular virgin lands, using a double-hull plow.
* Cultivation and tillage by a rotary cutter, which is connected to the PTO.
* Mowing grass with a rear rotor or segment mowing machine and haymaking with a baler.
* Planting tuberous vegetables with planting machines and sowing crops with a seeder.
* Planning and construction works using a municipal dump.

* The mini-tractor is designed for the European market, has successfully passed laboratory tests and certification in the European Union. The tractor is used by European and Russian farmers.

* The tractor is based on a frame skeleton, with a three-point attachment system and a power take-off shaft of 540 rpm.

* The track of the mini-tractor is adjustable in the range from 110 to 145 cm. Adjustment is necessary for agricultural tasks in compliance with row spacing. A gauge of 145 cm gives the tractor stability when using an excavator.

* A six-speed gearbox with reverse gear and reverse gear was developed for tractors weighing over one ton. The gearbox can withstand the extreme loads that a 20-liter single-cylinder diesel engine produces. with.

* Non-autonomous six-phase power take-off shaft Ø35 with rectangular splines, 540 rpm.
* Gearbox (6 + 2) with a planetary differential and a three-point suspension with a carrying capacity of up to 360 kg.
* Large rear wheels - 9.5 "-16". Proper tractor weight distribution and reliable traction.
* The package includes weighting ballasts, which increase the efficiency of the tractor by 14%, and hook power by 48%. The need for weighting was identified in laboratory tests of the tractor.
* The tractor has front wheels with a longitudinal tread, which increase efficiency by 7% higher than similar wheels with a chevron tread.


Overall dimensions, mm Length 2815 | Width 1470 | Steering wheel height 1450 | Muffler Height 1745
Ground clearance mm 320
Structural weight, without attachments, kg 700
Cabin with heating Missing
Rear wheel size 9.50 "- 16"
Front wheel size 6.00 "- 12"
Track mm 1100-1350
Type and speed of PTO Non-autonomous six-phase Ø35 with rectangular slots, 540 rpm.
Motor drive Connecting the engine to the gearbox through constant tension belts
Gear type Mechanical
Number of gears (3 forward + 1 reverse) x 2
Differential lock Automatic planetary lock
Wheel formula 2WD rear-wheel drive
Power Steering (Power Steering) Missing
Rear Mount Type Three-point hitch | 360 kg payload
Type of brake system Sealed disc brake
Clutch type Single-plate, single-stage, dry, with constant gearing
Hydraulic distributor Standard distributor for three-point suspension
Number of additional hydraulic outlets No additional water outlets
Light system High and low beam | Turn Signals | Marker Lights | Brake light | Rear suspension
Sound signal Horn
Dashboard Voltmeter | Coolant Temperature Sensor | Oil pressure sensor | Hour sensor
Minimum turning radius, cm 220


2WD Farm Tractor 12hp-24hp With Belt Drive 4 Stroke Water Cooling Diesel Engine 02WD Farm Tractor 12hp-24hp With Belt Drive 4 Stroke Water Cooling Diesel Engine 1


Company introduction

Zhejiang Xingyi Technology Co., Ltd is a professional machinery equipment manufacturer located in Henan Province, China. The company specializes in the production, processing and sales of food machinery, agricultural machinery and other machinery. We mainly cover the production scope: snack food processing machinery, candy processing machinery, fruit and vegetable processing machinery, printers, packaging machinery, water well drilling machine, various peeling machines.
The company covers an area of 10,000 square meters, with fixed assets of 50 million yuan. There are more than 100 employees, more than 30 technical personnel, and more than 100 sets of various production equipment. Equipment includes: large press machine, digital lathe, digital wire electrode cutting equipment, all kinds of processing machinery and equipment. The company has national patents and proprietary technology, with independent research and development capabilities.
After-sales Service
1 24 hour communication service
2 Fast logistics will provide you a smooth delivery service
3 One-year warranty and lifetime technical support
4 New design or product recommendation
5 Attend international Fair to negotiate with customer face to face
6 offer official invitation if you come to China
7 Reception service,help you to book good hotel
Q1 :What's your company after-sales service?
A1: We will check three times before shipment to ensure that the machine itself has no problems.Offering the best quality machine&the best service to our customers is the mission of our enterprise.
Q2 :Any warranty ?
A2:One year warranty. Frankly speaking, the quality of our machines is very stable. The machine will be checked three times before leaving the factory to ensure that you can receive the machine in the best condition. If you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ?
A3:We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4: Differences from other brands in China ?
A4:We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement.
We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
Q5 :Can I print my logo on the machine ?
A5: Yes, sure. We can provide professional customized logo services for customers.
Q6 :How does your factory do regarding quality control?
A6: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
