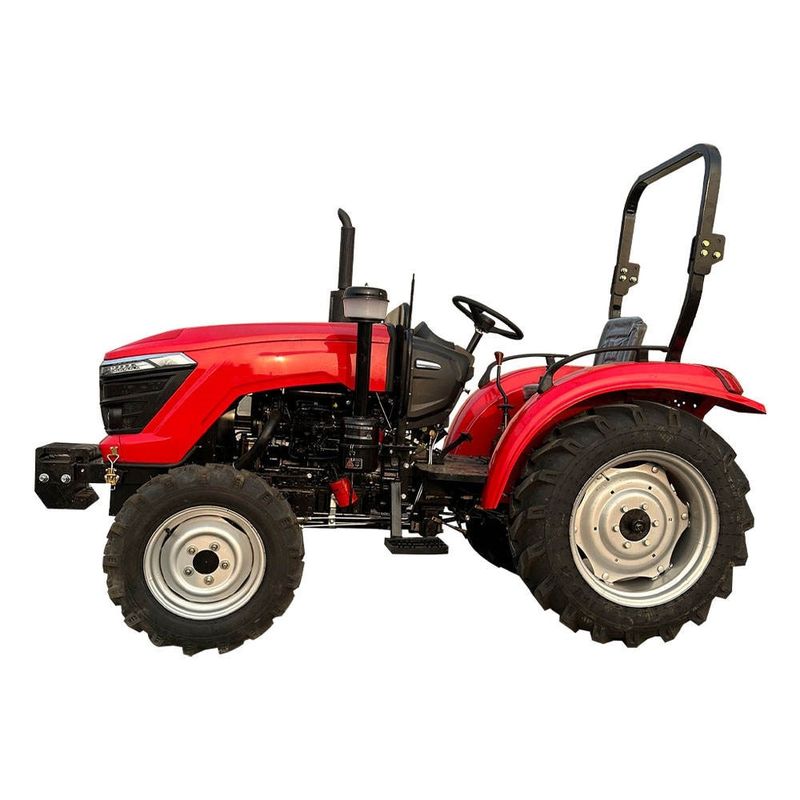

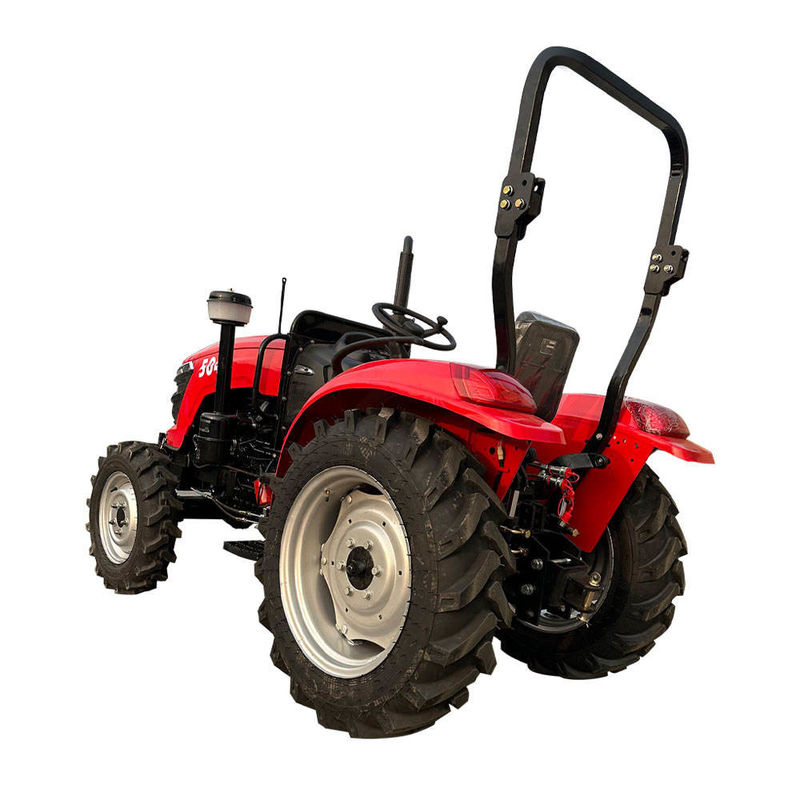

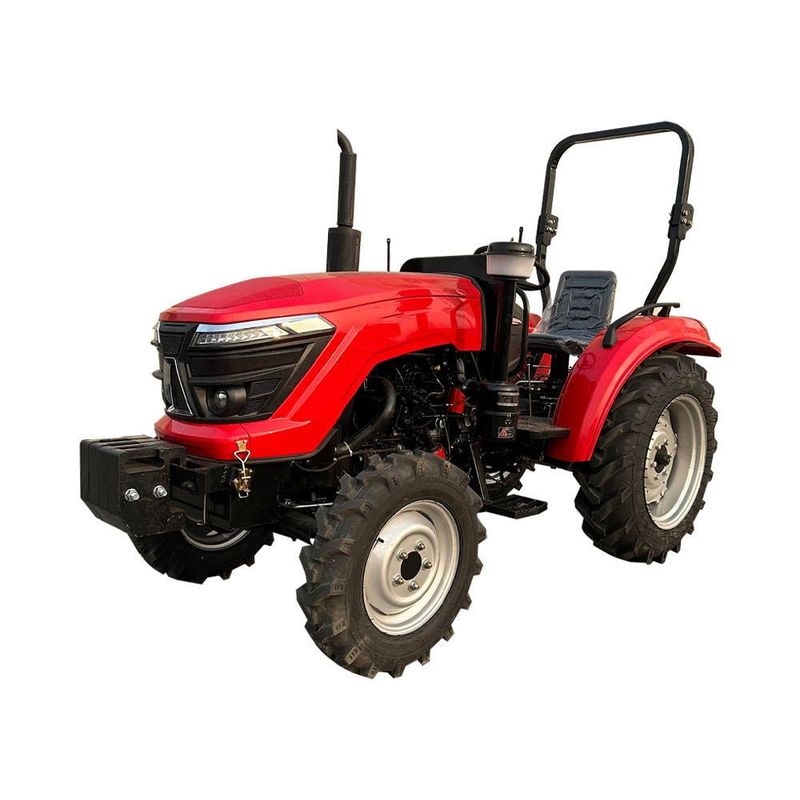

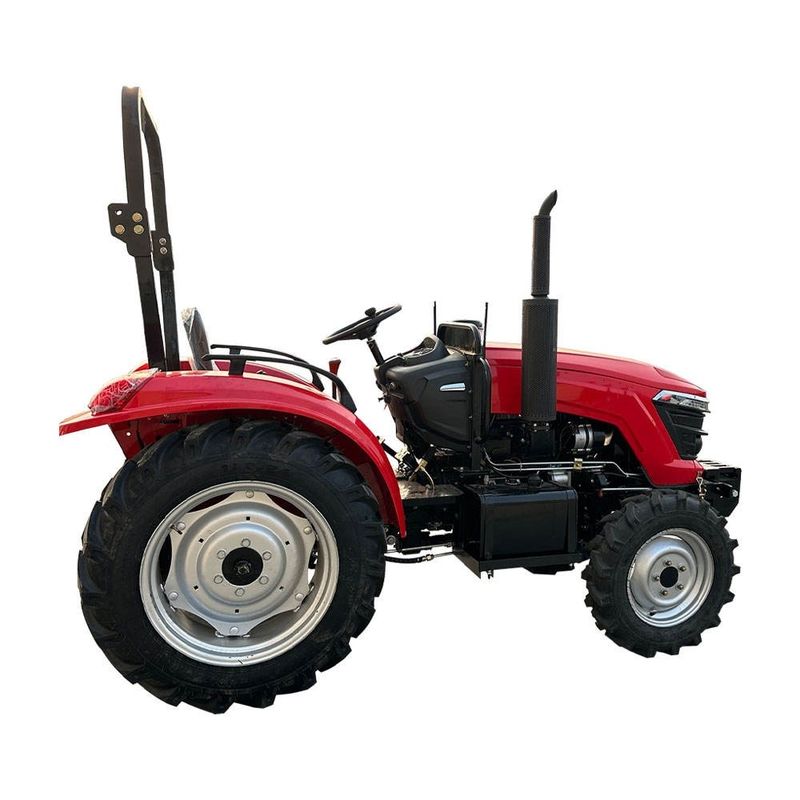

Multifunctional 4WD Wheel Tractor 50HP 4 Wheel Drive Farm Tractors
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRated Power (HP) | 50HP | Type | Wheel Tractor |
---|---|---|---|
Key Selling Points | Multifunctional | Machinery Test Report | Provided |
Video Outgoing-inspection | Provided | Applicable Industries | Farms, Home Use, Retail |
Weight | 1650 KG | By Wheel | 4WD |
High Light | tractor 50hp,50hp 4 wheel drive farm tractors,multifunctional tractor |
Mini tractor 4x4 for farming agriculture hydraulic tractor 50HP
Product description
Adaptable for mower, snow blade, mixer bucket, timber crane, wood chipper, firewood processor, sump grinder and so on.
- varied engine available
- additional roof or cab
- accept customized color
01
Cool and comfortable cab with fan
02
Suitable driving seat provides a comfortable driving experience
03
Easy-to-grip steering wheel to make your work easier
04
Reliable hydraulic system makes the tractor more powerful
05
Durable tires for safety&comfortable driving
06
Hydraulic output for all kinds of attachments
Specification | |||
Tractor Parameters |
Model | 504 | |
Drive type | 4WD | ||
Overall dimension LXWXH(mm) | 3100*1400*1640 | ||
Wheel track(mm) | 1100 | ||
Wheel base(mm) | 1950 | ||
Min. distance from ground(mm) | 310(front drive axle under) | ||
Structure Weight | with ROPs | 1650kg | |
Turning Round Radius(m) | without single break | 3.6±0.3 | |
Theoretical Speed(km/h) |
Forward | 2.31/31.46(general gear) 0.46-31.46(creeping gear) |
|
Reverse | 3.1-10.78(general gear) 0.62-10.78(creeping gear) |
||
Engine Specifications |
Type | Diesel, Vertical put, Four-stroke, water-cooling, spray directly combustion chamber |
|
Rated Power(km)/Rotation(r/min) | 36.8/2400 | ||
Diesel Consumption(g/km/h) | ≤228 | ||
Machine Oil Consumption(g/km/h) | ≤1.63 | ||
Cylinder no. | 4 | ||
Drive System |
Clutch | Dual-stage clutch | |
Gear Box | 8F+2R(optional 8F+8R) | ||
Hydraulic System |
Hydraulic Capacity(L) | 20 | |
Hydraulic Flow(L) | 33.6 | ||
Travelling Mechanism |
Tyre Size | Front | 650-16 |
Rear | 11.2-24 | ||
Steering Gear Type | hydraulic steering | ||
Driver Brake | Disk type | ||
Working Device |
Hydraulic System | System Max. Lift Capacity at 610mm of Suspension Point(KN) |
>11.5 |
Suspension model | Rear, three-points suspension,Category: I | ||
P.T.O Shaft | Rotating Speed(rpm) | 540/720 | |
Spline Size | φ35,6 Rectangular spline |
