32HP 4WD Gear Drive Farm Tractor Compact Orchard Crawler Mini Tractor CE Certified
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWeight | 720 KG | By Wheel | 4WD |
---|---|---|---|
Usage | Farm Tractor | Drive Type | Gear Drive |
Certificate | CE | Power | 32HP As Optional |
Number Of Gears | (3 Forward + 1 Reverse) Xhigh/low Speed | Distance For Remotecontrol | ≥50M |
High Light | mini tractor ce,32hp mini tractor,32hp mini 4 wheel tractor |
32hp small rotary cultivator Crawler lawn mower tractor mini tractor for orchard rotary tiller cultivator
Product description

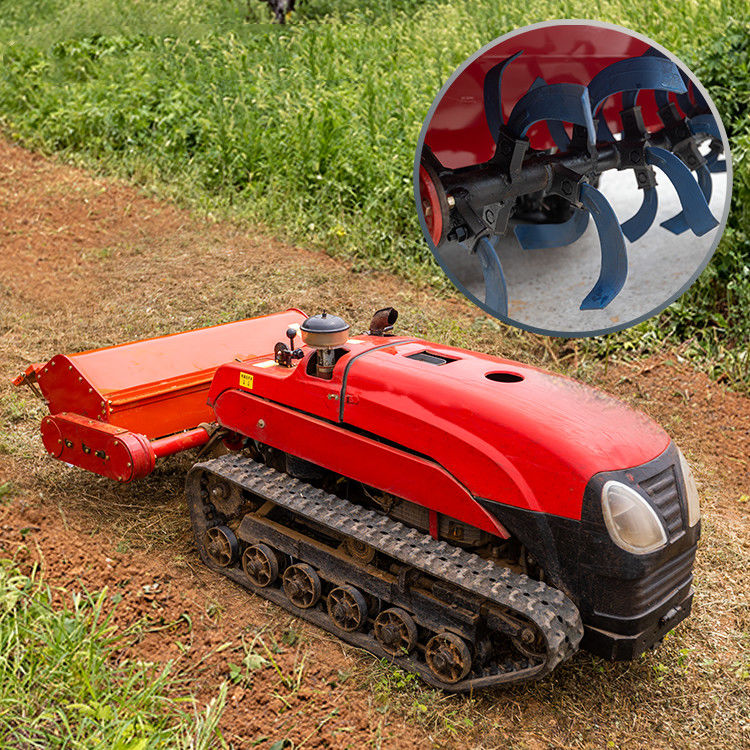

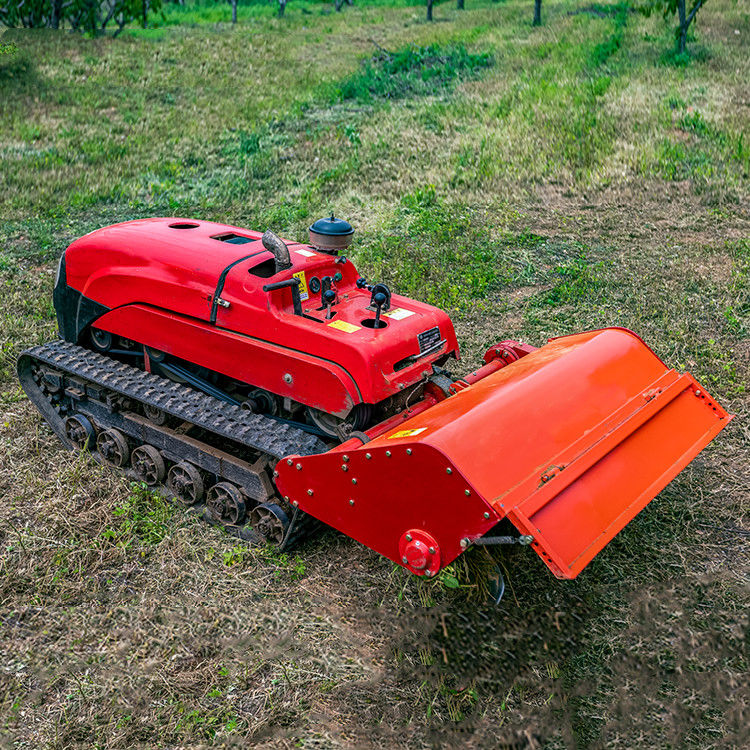

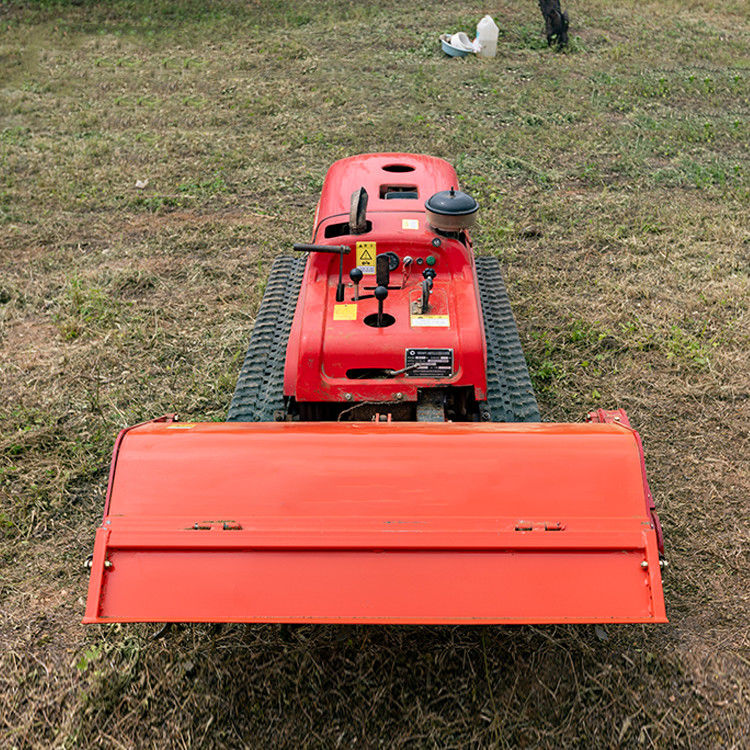

Crawler Tractor
Crawler self-propelled rotary cultivator with advanced electronic integrated control system and hydraulic system combined. This product is equipped with both mechanical and remote control systems. It can drive the tractor to operate, and can also be remotely controlled, realizing the manual and remote control integrated operation, greatly reducing the labor intensity of the operator, and ensuring the personal safety of the operator under special operation scenarios
Overall Dimension |
Overall length | 2300mm |
Overall Width | 1300mm | |
Total Height | 960mm | |
Diesel engine rated power KW (PS) | Changchai 15.5(21)-24(32) | |
Calibrated speed of diesel engine(rpm) | 2200 or 2300 | |
crawler spacing(mm) | 752 | |
Ground Clearance(mm) | 145 | |
Turning Radius(mm) | 1500 | |
Transmission Mode | Gear wheel and chain | |
Ploughing depth stability | ≥85% | |
Ploughing depth (cm) | ≥12 |
Flexible tool selection
The basic supporting machines and tools are rotary cultivator.
and other machines and tools such as ditching machine, backfilling machine, lawn mower, pesticide applicator and fertilizer applicator can be selected by users according to you need
Humanized Console
Crawler self-propelled rotary cultivator tractor with advanced electronic integrated control system and hydraulic system combined
Flexible response
4 forward gears
1 Reverse gear
Portable and comfort
This product is equipped with both mechanical and remote control systems.
It can drive the tractor to operate, and can also be remotely controlled, realizing the manual and remote control integrated operation, greatly reducing the labor intensity of the operator, and ensuring the personal safety of the operator under special operation scenarios
Design
Widened Chassis
Ensure the stability
Of the front and rear
Of the machine
