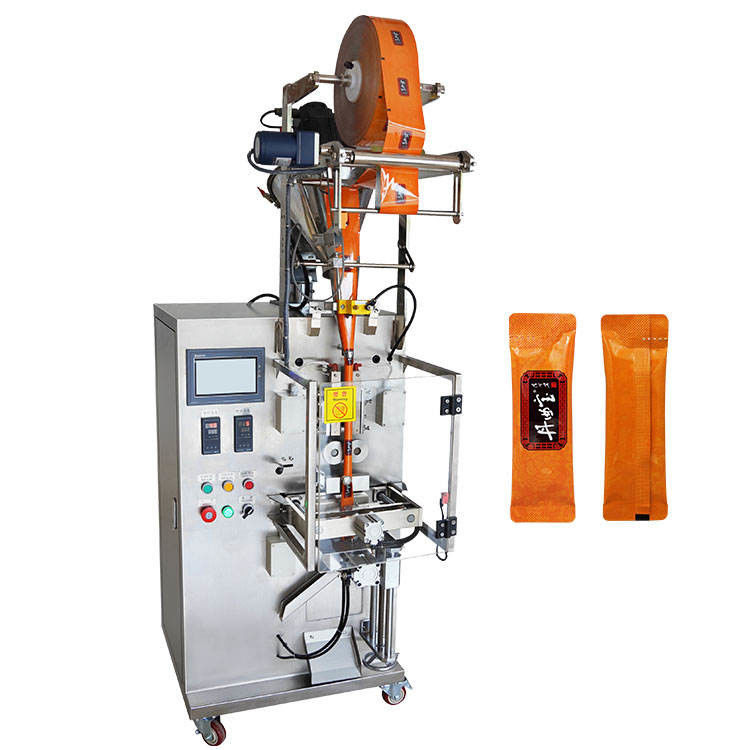

Automatic powder sachet pouch packing package instant coffee pack machine
Machine features:
1) Automatic powder packing machine can finish the process like conveying bag, bag making, filling, weighing, sealing, cutting, counting, lot number, etc.
2) Imported Mitsubishi, Japan PLC control, Chinese and English intelligent screen, stainless steel cabinet. Set up the required data(include filling, weighing, bag size, etc) in the touch screen.
3) Stepper Motor control, this system has the advantage of precise, needless to adjust the other parts.
4) Intelligent temperature control by temperature controller to make heat balance better. use bilingual display screen control system and stainless steel cabinet.
5) Fine packaging performance ,low noise , sealing texture and strong sealing performance.
6) With safe plastic box on rotating blade to avoid hurting operator's hands.
7) It has color system controller, so that can get the complete trade mark design.
8)With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.
Technical parameter:
| Type | PM-60FZ | PM-60FB | PM-420D |
| Packaging speed | 40-60bags/min | 40-60bags/min | 10-50 bags/min |
| Measuring range | 0.5-80ml | 0.5-90ml | 10-2000ml |
| Bag size(mm) | L:40-140 W:30-110 | L:40-160 W:30-110 | L:50-300 W:80-200 |
| Max film | 220mm | 240mm | 420mm |
| Sealing type | 3/4 sides sealing | back sides sealing | Pillow bag, stand up pouch, pillow with hole pouch, continuous bag |
| Power | 1200W | 1200W | 2.5KW |
| Net weight | 230kg | 250kg | 650kg |
| Voltage | 220V,380V/50Hz,60Hz |
| Packaging film | Paper/PE,PP/Aluminum foil(all heating material) |
| Overall size(mm) | L800*W700*H1600 | L2250*W970*H2700 |
Suitable range:
Powder packaging machine is suitable for food, pharmaceutical, cosmetic, pesticides, plastic products and special products in the industry, automatic packaging powder materials. Such as: food additives, milk powder, soy flour, protein powder, the powder, mask powder, pearl powder, coffee powder, cocoa powder, flour, health tea powder, glucose powder, soda powder.
Company introduction
Zhejiang Xingyi Technology Co., Ltd is a professional machinery equipment manufacturer located in Henan Province, China. The company specializes in the production, processing and sales of food machinery, agricultural machinery and other machinery. We mainly cover the production scope: snack food processing machinery, candy processing machinery, fruit and vegetable processing machinery, printers, packaging machinery, water well drilling machine, various peeling machines.
The company covers an area of 10,000 square meters, with fixed assets of 50 million yuan. There are more than 100 employees, more than 30 technical personnel, and more than 100 sets of various production equipment. Equipment includes: large press machine, digital lathe, digital wire electrode cutting equipment, all kinds of processing machinery and equipment. The company has national patents and proprietary technology, with independent research and development capabilities.
After-sales Service
1 24 hour communication service
2 Fast logistics will provide you a smooth delivery service
3 One-year warranty and lifetime technical support
4 New design or product recommendation
5 Attend international Fair to negotiate with customer face to face
6 offer official invitation if you come to China
7 Reception service,help you to book good hotel
FAQ
Q1 :What's your company after-sales service?
A1: We will check three times before shipment to ensure that the machine itself has no problems.Offering the best quality machine&the best service to our customers is the mission of our enterprise.
Q2 :Any warranty ?
A2:One year warranty. Frankly speaking, the quality of our machines is very stable. The machine will be checked three times before leaving the factory to ensure that you can receive the machine in the best condition. If you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ?
A3:We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4: Differences from other brands in China ?
A4:We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement.
We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
Q5 :Can I print my logo on the machine ?
A5: Yes, sure. We can provide professional customized logo services for customers.
Q6 :How does your factory do regarding quality control?
A6: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
