Intelligent Rotating Sugar Tablet Press Medicine Herbal Pharmaceutical Tablet Press
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVoltage | 220V | Condition | New |
---|---|---|---|
Warranty | >2 Year | After-sales Service | Online Service Long Life |
Punch Quantity (Set) | 5`21 | Max.Tablet Pressure (Kn) | 40`80 |
Motor Power (Kw) | 1.5 | Machine Weight (Kg) | 190 |
High Light | herbal pharmaceutical tablet press,rotating rotary tablet press,rotating pharmaceutical tablet press |

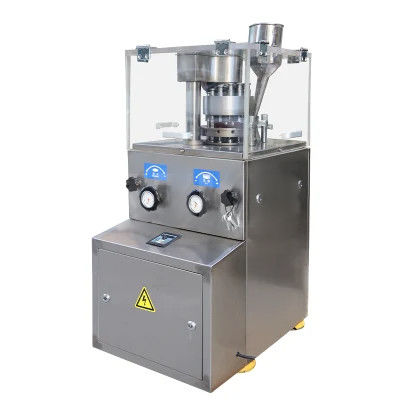

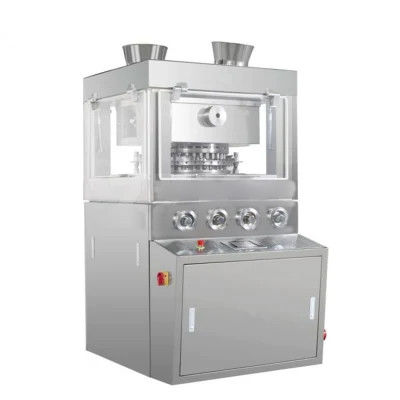

Medicine intelligent rotating sugar tablet press Chemical medicine herbal tablet tablet press machine
Product Description

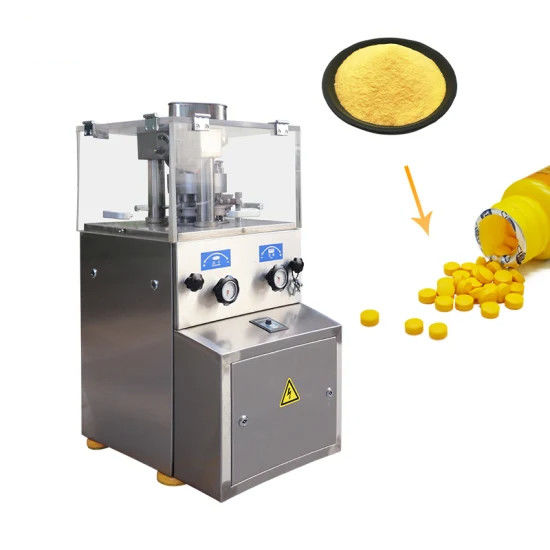

Series Electric Rotary Tablet Press is a small tablet pressing machine with automatic rotation and continuous tablet pressing. Within the pressure range of the machine, it can press the granular raw materials with powder content less than 10% into round, special-shaped and lettering tablets of 5~20 mm. It is mainly used in pharmaceutical, chemical, food, electronic and other industries.

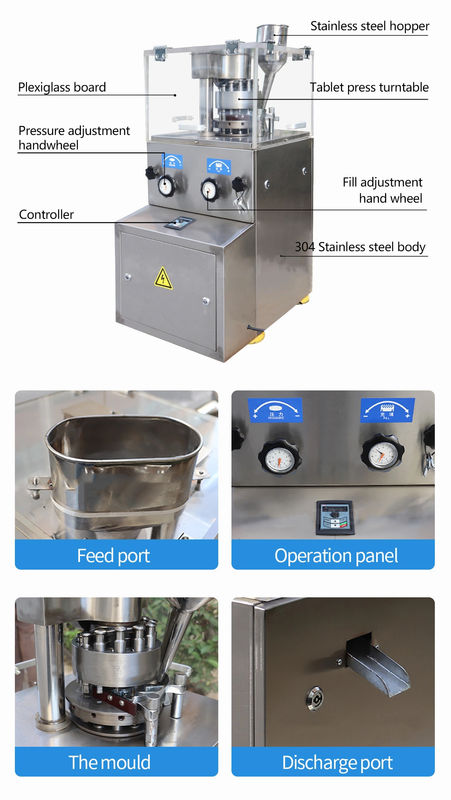

The whole machine is made of precision machining of stainless steel materials. The support frame is made of aluminum alloy, which can be disassembled from top to bottom for easy transportation. The work chamber is covered with fully transparent plexiglass, which can effectively prevent mosquitoes, dust, clean, beautiful, and work at a glance, waste is easy to clean and fully meets national GMP standards. You can remove the glass cover when removing residual powder and debris, it's very convenient.
Product Advantage:
The rotary tablet press is equipped with an overload protection device that automatically shuts down when the pressure is overloaded. Electromagnetic brake motors and other safety devices can be adjusted and operated even during operation.
Model | XY-5A | XY-7A | XY-9A |
Punch quantity (Sets) | 5 | 7 | 9 |
Max.tablet pressure (kn) | 40 | 60 | 60 |
Max.tablet diameter (mm) | 20 | 20 | 20 |
Max.filling depth (mm) | 15 | 15 | 15 |
Max.tablet thickness (mm) | 6 | 6 | 6 |
Turret rotary speed (r/min) | 30 | 30 | 30 |
Production capacity (PC/h) | 9000 | 12600 | 16200 |
Motor power (kw) | 1.5 | 1.5 | 1.5 |
Overall size (mm) | 400×580×1000 | 400×580×1000 | 400×580×1000 |
Machine weight (kg) | 190 | 190 | 190 |
