xKey Selling Points | High Productivity | Marketing Type | Ordinary Product |
---|---|---|---|
Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
Warranty Of Core Components | 1 Year | Core Components | Motor, Pump, Pressure Vessel, Gearbox, Other, Engine, Gear, PLC, Bearing |
Engine Brand | Top Brand | Weight | 3980 KG |
High Light | 90hp agricultural tractor,agricultural tractor ce,ce agriculture tractor equipment |

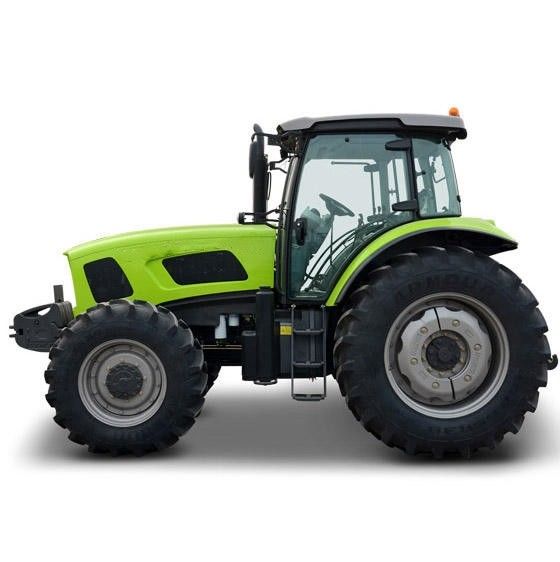

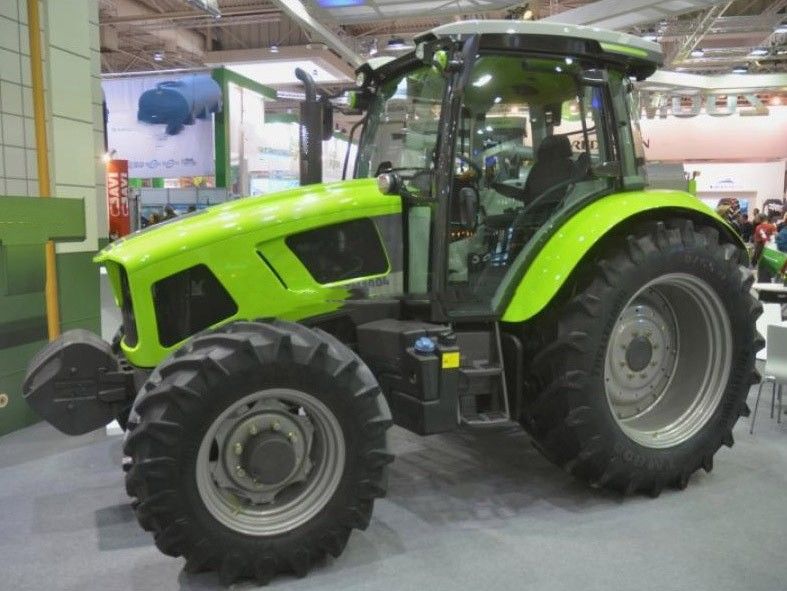

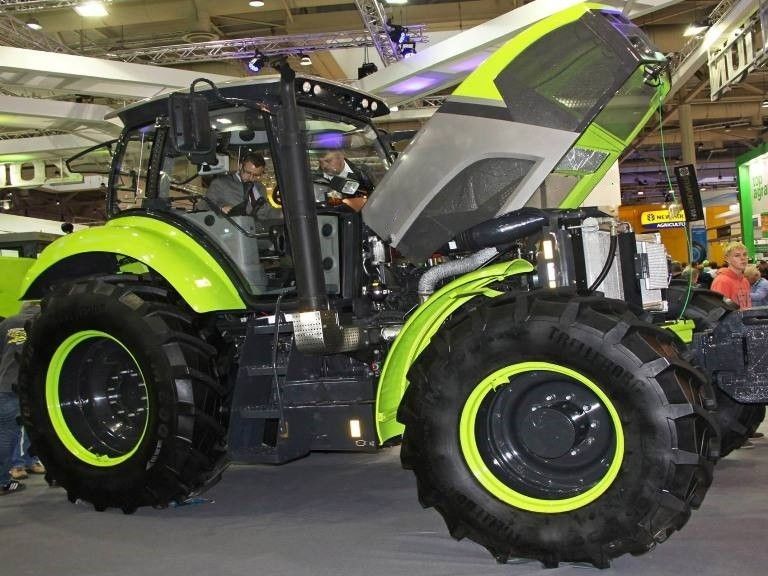

Top Brand Heavy Duty Multifunctional 90Hp Agricultural Farm Tractor Agriculture Machinery Equipment
Product description
Large Torgue reservation,Perform excellent in tough environment or with heavy load.
Water-proof front axel, wide steering angle,,small turning radius, turning flexible, excellent performance of waterproof;
Dual-speed power output, supporting a wide range of mating implement
New design:Wholly welding is more stable, also with a power hood;
Adopting side mounted control mechanism and meshing sleeve shift , making operation convenient and Transmission gears of 10F+10R shuttle,complete forward and backward with one shaft;
Independent-operation dual-action cluth, portable performance.
Model | Unit | XY1304 |
Dimension (L×W×H) | mm | 4700×2000×2900 |
Wheelbase | mm | 2352 |
Min. operation weight | kg | 3980 |
Min. ground clearance | mm | 430 |
Rated power | kW | 95.6 |
Clutch type | / | Dual action, independent control |
Gearbox | / | 10F+10R |
Brake type | / | Wet disk type, mechanical control |
Tyre specifiation (front/reverse) | / | 11.2-24(12.4-24)/16.9-34 Paddy field |
Hydraulic lifter type | / | Strong pressure (single acting conversion), |
Max. lifter force | kN | ≥31 |
Hydraulic output | / | 2 hydraulic output |
Hydraulic suspension system | / | Three-point rear suspension, III type |
Traction force | kN | 31 |
PTO speed | r/min | 540/760, optional 540/1000,760/850 |
ROPS or Cabin | / | Cabin, optional sunshade |
