Construction Water Well Drilling Rig Machine 300m Depth 330mm Diameter 8.7t Weight

Place of Origin China
Brand Name Infectious
Certification CE
Model Number WDM-01
Minimum Order Quantity 1 sets
Price $190000.00-$200000.00 Sets
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20000 Sets Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Applicable Industries Construction Works Weight 8.7 T
Warranty Of Core Components 1 Year Core Components Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Usage Water Well Dimension(L*W*H) 3980*3130*6500mm
Max Drilling Depth 300m Max Drilling Diameter 330mm
High Light

drilling rig machine 300m


water well drilling rig machine


300m aluminum drilling machine

Leave a Message
Product Description

Small Water Well Drilling Rig 300 Meter China Mobile Well Drilling Rigs Machine Price


Product Description

deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.

The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.

* Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.


* The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work eficiency.


* Unique hydraulic matching technology for high system efficiency.


* Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of diling pressure according to dilling depth.


* Four hydraulic high supporting legs are provided to achieve rapid leveling of the rig without liting. The swing-type centering device provides a wide working space when working.

Product Paramenters

Drilling capability Drilling depth m 300(φ89)
Max. diameter of working floor mm φ330
Feeding system Max. liting capacity kN 160
Max. feeding capacity kN 80
Max. lifting speed m/min 32(25)
Max. feeding speed m/min 60(48)
Stroke mm 3800(7000)
Top drive Max. torque N.m 6600/3300
Max. speed r/min 95/190
I.D mm φ45
Deck engine Type   YC4A125-T30
Rated power kW 92
Tool winch Hoisting capacity kN 15
Breakout device Max. breakout torque N.m 18000
Mud pipe I.D mm φ55
Max. pressure MPa 8
Chassis Highest speed km/h 2.4
Max. climbing gradient % 39
Max. ground clearance of crawler mm 1000
Max. inner distance between front support legs mm 2600
Max. iner dstance between back support legs mm 2700
Working dimension mm 3980*3130*6500(3980*3130*8100)
Transportation dimension mm 4450(3980)*1800*2400(6050(3980)*1800*2400)
Weight t 8.7(9.7)

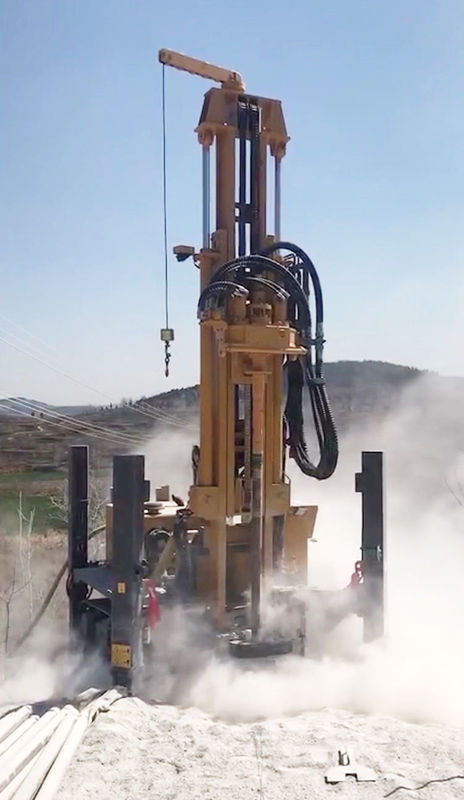

Construction Water Well Drilling Rig Machine 300m Depth 330mm Diameter 8.7t Weight 0Construction Water Well Drilling Rig Machine 300m Depth 330mm Diameter 8.7t Weight 1

Construction Water Well Drilling Rig Machine 300m Depth 330mm Diameter 8.7t Weight 2
Company introduction
Zhejiang Xingyi Technology Co., Ltd is a professional machinery equipment manufacturer located in Henan Province, China. The company specializes in the production, processing and sales of food machinery, agricultural machinery and other machinery. We mainly cover the production scope: snack food processing machinery, candy processing machinery, fruit and vegetable processing machinery, printers, packaging machinery, water well drilling machine, various peeling machines.
The company covers an area of 10,000 square meters, with fixed assets of 50 million yuan. There are more than 100 employees, more than 30 technical personnel, and more than 100 sets of various production equipment. Equipment includes: large press machine, digital lathe, digital wire electrode cutting equipment, all kinds of processing machinery and equipment. The company has national patents and proprietary technology, with independent research and development capabilities.
After-sales Service
1 24 hour communication service
2 Fast logistics will provide you a smooth delivery service
3 One-year warranty and lifetime technical support
4 New design or product recommendation
5 Attend international Fair to negotiate with customer face to face
6 offer official invitation if you come to China
7 Reception service,help you to book good hotel
Q1 :What's your company after-sales service?
A1: We will check three times before shipment to ensure that the machine itself has no problems.Offering the best quality machine&the best service to our customers is the mission of our enterprise.
Q2 :Any warranty ?
A2:One year warranty. Frankly speaking, the quality of our machines is very stable. The machine will be checked three times before leaving the factory to ensure that you can receive the machine in the best condition. If you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ?
A3:We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4: Differences from other brands in China ?
A4:We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement.
We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
Q5 :Can I print my logo on the machine ?
A5: Yes, sure. We can provide professional customized logo services for customers.
Q6 :How does your factory do regarding quality control?
A6: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
