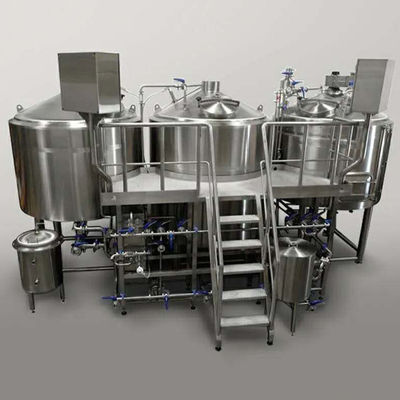

Commercial Craft Beer Brewing 500L House Micro Brewery System

Product Details:
Place of Origin: China
Brand Name: Fude
Certification: CE,ISO,UL,3C
Model Number: FD-B-500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000-50000
Packaging Details: wooden case package
Delivery Time: 7
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000

Detail Information

Material: 304stainless Steel Progress: Fermentig Machine
Processing Types:: Alcohol Warranty:: 5 Years
Core Components:: Gearbox, Motor, PLC Cooling Way:: Dimple Plate Cooling
Thickness Of Inner Jacket:: 3mm Insulation Materials:: PU Foma Insulation
Control System:: PLC Usage:: Beer Brewing
Capacity:: 500L Welding:: TIG Welding
Polish:: Ra0.4 Brand: Fude
High Light:

500L micro brewery system


House Micro Brewery System


500L Commercial Brewing Machine

Product Description

Professional Beer Factory500L Brew House Micro Brewery Brewing System Commercial Craft Beer Brewing Equipment for Brewer


Product Description

Beer home brewing Micro Craft Beer Brewery Equipment

Semi-automatic Beer Brewing System homemade is the complete mash system, including the mash/lauter tun, boiling/whirlpool tank and hot water tank. The heating way is steam heating which is high-efficiency.
Commercial Craft Beer Brewing 500L House Micro Brewery System 0

This system features: small footprint, high production efficiency, easy to operate.

System Item Parameter Qty
Malt milling system grain milling machine 1500Kg/H 1
four vessels Brewhouse wort production tanks 2000L effective brew tanks 4
Fermenting system Fermenters 2000L efective volume 18
cooling system glycol water tank and chiller 6000L +10HP 2
five vessels CIP cleaning system cleaning machine for brewhouse and fermenters 800L for brewhouse and 500L for fermenters 2


Commercial Craft Beer Brewing 500L House Micro Brewery System 1


Home Micro Brewery System Beer Fermenting Brewing Machine

> Brewhouse Combination Diversification----Customized
> Decoction,infusion,multi-step infusion mashing can be realized.
> Electric,Steam,Gas directly fire heating source for optional
> 15-20 days free installation and training service offered by profession engineer.
> Mirror polishing and wire drawing SUS 304 for optional,thickness:3-4mm
> Rational layout, Humanized design and convenient operation

More Details


2 Vessels Brewhouse System 3 Vessels Brewhouse System
Mash/Lauter tun+Brew kettle/whirlpool tank
Capacities: 100L-3000L, 3/5/7/10/15/20/30BBL
Heating Sources: steam, electric, direct fire
1.Mash/lauter tun + brew kettle + whirlpool tank
2.Mash tun +lauter tank + brewkettle & whirlpool tank
Capacities: 100L-5000L, 3/5/7/10/15/20/30BBL
Heating Sources: steam, electric, direct fire
Combinated 3 Vessels Brewhouse System 4 Vessels Brewhouse System
1.Lauter & storage tank+brew kettle/whirlpool tank 2.lauter& whirlpool tank+brew kettle +whirlpool tank
3.Lauter & HLT+brew kettle +whirlpool tank
Capacities: 100L-1000L, 3/5/7/10BBL

Heating Sources: steam, electricm directly
Mash tun, lauter tank, brew kettle, whole tank
Capaticity:2000-5000L, 20/30BBL
Heating Sources: steam



Commercial Craft Beer Brewing 500L House Micro Brewery System 2



Our Team


Commercial Craft Beer Brewing 500L House Micro Brewery System 3


Our Services

a.) Free consultation service before, during, and after sales;

b.) Project planning and design services;

c.) Free debugging instruction of equipment until everything is functional;

d.) Management of equipments' long distance shipping from seller's factory to named port or station by buyer;

e.) Training of equipment maintenance and operating personally;

f.) New production techniques;

g.) Provide 36 months complete warrantee for main parts and life-time maintenance service;The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free;
