Home ProductsBrushless Diesel GeneratorThree Phase 15kw Weichai Silent Brushless Diesel Generator

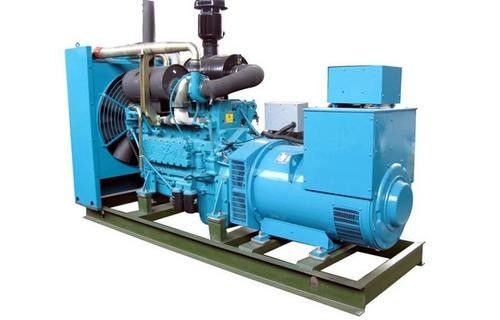

Three Phase 15kw Weichai Silent Brushless Diesel Generator
Three Phase 15kw Weichai Silent Brushless Diesel Generator Three Phase 15kw Weichai Silent Brushless Diesel Generator

Three Phase 15kw Weichai Silent Brushless Diesel Generator

Product Details:
Place of Origin: China
Brand Name: Fude
Certification: CE, ISO,3C
Model Number: FD_Weichai-D500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000usd-82000
Packaging Details: Wooden case packages
Delivery Time: 15
Payment Terms: L/C, T/T, Western Union, MoneyGram,
Supply Ability: 1000
Contact Now

Detail Information
Excitation Mode:: Brushless Self-excitation Diesel Generator Speed:: 1500RPM/1800RPM
Type:: Silent(super Silent)or Open Diesel Generator Fuel Consumption:: 84.000 Kg./hr Diesel Generator
Governing:: Electronic Speed Regulation Diesel Generator Power Efficiency:: 0.8(Lag) Diesel Generator
Frequency:: 50HZ/60HZ Rated Current:: 720A
Warranty: 12monthes Cooling System: Water Cooling System Or Wind Cooling
Rated Voltage: 400V Certificate: CE ISO9001/ISO14001
Fuel Tank: 6-8hours Running Time Alternator: BC184H(Optional)
High Light:

15kw Brushless Diesel Generator

,

Weichai Brushless Diesel Generator

,

Weichai Silent Diesel Generator

Product Description

Three Phase 15kw Silent Diesel Generator Set Powered by Weichai



Standard Configuration

Three Phase 15kw Weichai Silent Brushless Diesel Generator 0

Genset specification
Genset Model
ENSC85S-3
Prime Power(50HZ)
68KW /85KVA
Standby Power(50HZ)
75KW /94KVA
Frequency/Speed
50Hz/1500rpm
Standard Voltage
230V/400V
Voltage Available
220V/380V,240V/415V
Phases
Three phases, four wires
Engine Specification General Performance
Engine Model
6BT6.9-G1
Engine Type
4 stroke, Vertical in-line, 6-cylinder
Engine Speed
1500 r.p.m
Prime Power
86kw
Standby Power
92kw
Governor Type
Mechanical
Air Intake Way
Turbocharged
Displacement
5.9L
Cylinder Bore * Stroke
102mm × 120mm
Compression Ratio
16.5:1
Coolant Capacity Engine Only
9.9 Liters
Alternator data
Engine Model
Stamford UCI224G
Phase
3 Phase
Power Factor
0.8
Drip Proof
IP 23
Insulation class
H
Voltage regulation
± 0,5 %
Altitude
≤ 1000 m
Over speed
2250 min -1


Three Phase 15kw Weichai Silent Brushless Diesel Generator 1

Fude Diesel generator set : Safety – Stability – Economy - Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cumis, Peks, Detz , Doosan, Weichai, Ricardo, Yangdong,ect.
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, KADA.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working.
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system.
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Open type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Diesel generator Prime output power: from 5KVA to 2500KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator Phase and connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG optional
Alternator Insulation: Class H
Alternator Protection: IP21 ~ IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%


Diesel generator set noise level produced by 6 major sources as below

* Engine noise – from 100 dB(A) to 121 dB(A)
* Cooling fan noise – from 100 dB(A) to 105 dB(A)
* Alternator noise – from 80 dB(A) to 90 dB(A)
* Induction noise – from 80 dB(A) to 90 dB(A)
* Engine exhaust – from 120 dB(A) to 130 dB(A)
* Structural/mechanical noise – caused by mechanical vibration

Advanced design of canopy structure and inner structure made our generators More Silent

Humanized design in canopy and base frame made our generators More Convenient

Special design in details made our generators Rainproof & Rustproof

Three Phase 15kw Weichai Silent Brushless Diesel Generator 2

Our customers include Africa, Southeast Asia, West Asia, South America and other emerging developing countries. We are committed to providing our customers with better quality, better price and good products, and creating more value for our customers

1.We develops independently with 4100 series, British ricardo R4105 and R6105 series, the 6113 series and steel 6126 series diesel engines.
2.Combined the advantages of domestic and foreign advanced diesel engines , improved the fuel injection system, intake and exhaust system, the cooling system to suit the seeds of various generating sets.
3.High power, low fuel consumption, easy to start, equipped with air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without brush as optional parts.
5.The generator can be equipped in factory, school, hospital, farm,etc.

FAQ

1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global brand engine which with the global warranty service. And the alterntors Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
