China Automatic Food Making Machine manufacturer

Cork ROPP Cap Vodka Wine Glass Bottle Filling And Capping Machine

Product Details:
Place of Origin: China
Brand Name: Fude
Certification: CE,ISO,UL,3C
Model Number: FD-F-600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 5000usd-20000usd
Packaging Details: wooden case packages
Delivery Time: 7
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000

Detail Information

Packaging Material:: Plastic, Glass Function: Washing Filling Capping
Weight: 12500Kg Warranty: 1year
Application: Pharmaceutical, Beverage, Chemical Bottle Height: 120~310mm
Mouth Diameter:: 26mm~40mm Filling Heads:: 50
Filling Pressure:: 0.2~0.4Mpa Capping Head:: 12
Bottle Diameter:: 50~96mm Filling Temperature:: 85-90℃
Filling Valve Flow:: 140~160ml/s
High Light:

ROPP Cap Bottle Filling And Capping Machine


Cork Cap Bottle Filling And Capping Machine


ROPP Cap Wine Bottle Filling Machine

Product Description

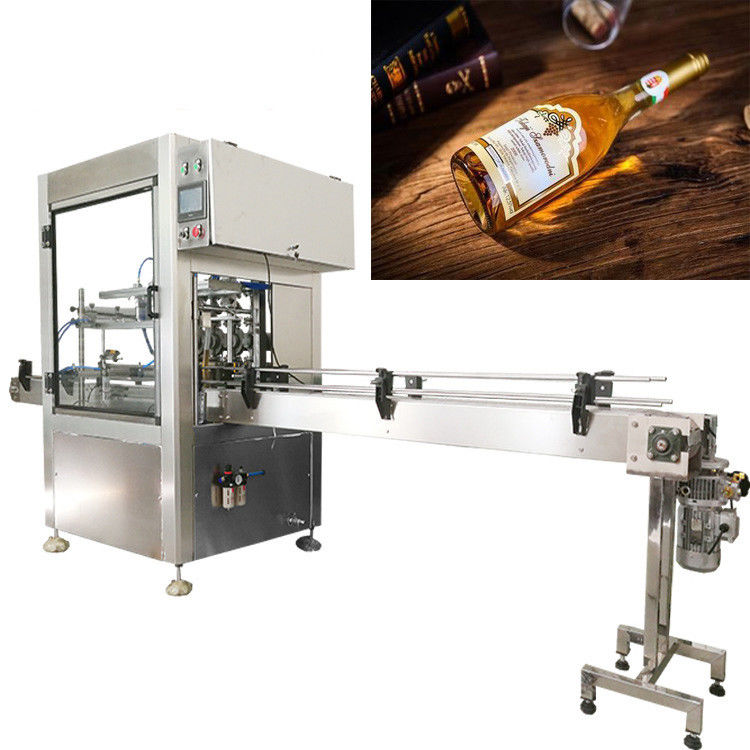

Automatic beer glass bottle filling and capping machine


Glass BottleChina Automatic Vodka / Alcohol drinks / Wine Filling Bottling Machine with Cork cap or ROPP cap



This series of machine is specially apply to glass bottle carbonated drink filling,it combine with the function of washing filling

capping in one machine.It is mainly used for washing,filling capping for carbonated water,cola,sparkling wine,water etc carbonated beverage.Reasonable structure,safety operation,reliable operation,easy maintenance.Transform bottle adopt block bottle neck

technology,no need to adjust equipment level when change different type bottles,simple replace with the bottle mouth,bottle diameter

related arc guide plate,dial etc.Stainless steel washer bottle clip durable,do not touch bottle screw part,to avoid secondary pollution

bottle.And material contact parts are made of food-grade stainless steel,no process corners,easy to clean.Pneumatic diaphragm valve

controls flow of material into the liquid to ensure filling accurate.Open the valve mechanism driven by the cylinder,accurate and reliable.

Tell high flow,high precision filling valve,filling fast,accurate and no liquid surface damage.Capping head adopts constant torque magnetic

and lack of cover protection devices.A complete overload protection devices,can effectively protect the equipment and operator safety.


Alcohol / Vodka / Wine Filling Machine


This series of wine filling machine is mainly used for alcohol and all kinds of spirits filling and sealing in glass bottles, also according to customers' demands, to fill in PET bottles, which is with washing, filling and capping monoblock. Such series of machine can fill with different capacities as requirements. Together with other assistant equipments used in the line for alcohol production line.

Features of Glass bottle wine filling machine / bottling equipment

1.Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.

2.Open gear combinated gear box transmission, with no-off device. Frequency conversion velocity modulation device extends the speed modulating scope

3.This machine has self oil lubrication device so that the lubrication points could be lubricated regularly in time. The machine is of high efficiency, low noise and long life.

4.Centering guide is of double guide bar type, with the function of pre-covering.

5.Wine jar and capping head are driven by manual, also can be driven by electricity to fit different sizes of bottles.

6.The material height in the tank is controlled by electric probe to assure the precise liquid level.

Models of Glass bottle wine filling machine / bottling equipment

Item FD8-6-1 FD16-16-5 FD18-18-6 FD24-24-8 FD32-32-10
Capacity 1000bph(500ml) 5000bph(500ml) 6000bph(500ml) 80000bph(500ml) 12000bph(500ml)
Rising heads 8 16 18 24 32
Filling heads 6 16 18 24 2
Capping heads 1 5 6 8 10
Bottle Diameter Commonly 50-110mm (can adjustable)
Bottle Height Commonly 150-340mm(can adjustable)
BOTTLE Glass or Plastic bottle
Rising pressure 0.2-0.25Mpa
Overall size 2030*1700*2350 2130*1700*2350 2450*1800*2350 2780*2200*2350 3600*2650*2350
Weight 3.1t 3.3t 3.5t 4.5t 5.5t



Cork ROPP Cap Vodka Wine Glass Bottle Filling And Capping Machine 0

Cork ROPP Cap Vodka Wine Glass Bottle Filling And Capping Machine 1

Cork ROPP Cap Vodka Wine Glass Bottle Filling And Capping Machine 2

Installation and after sales service:

Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 100 per day will be charged extra.

After sales service:

1. we have seven technicians who gets passport ready to travel all over world to offer service to you. 2. We have 24hours hot line for Technical Support. 3. We get 18hours internet line for technical support. 4.Video camera in workshop to help you adjust and solve machine problem.
