Name: 500kg/Hour Freon Compressor Mesh Belt IQF Freezing Machine
Brand: Fude
SKU: FD-F-100-1000
Price: 1000 USD

Detail Information
Model No:	FD-100-1000	Weight:	5000kg
Product Name::	Tunnel Quick Freezer	Material:	304SS
Application::	Food Quick Frozen Machine	Freezing Time::	10-50 Minute
Warranty:	1year	Dimension(LWH):	7000mm1500mm2100mm
Voltage:	220v/380v	Function:	Quick Freezing Food
Capacity::	100kg/hour	Freezer Type:	Tunnel Quick Freezer
After-sale:	Engineers Available To Service Machinery Overseas
High Light:	500kg/hour Food Freezing Machine , 500kg/hour IQF Freezing Machine , Mesh Belt IQF Freezing Machine

Product Description

IQF quick freezer/tunnel quick freezing machine

500kg/hour Stainless steel Freon compressor quick cold machine mesh belt IQF quick freezer/tunnel quick freezing machine

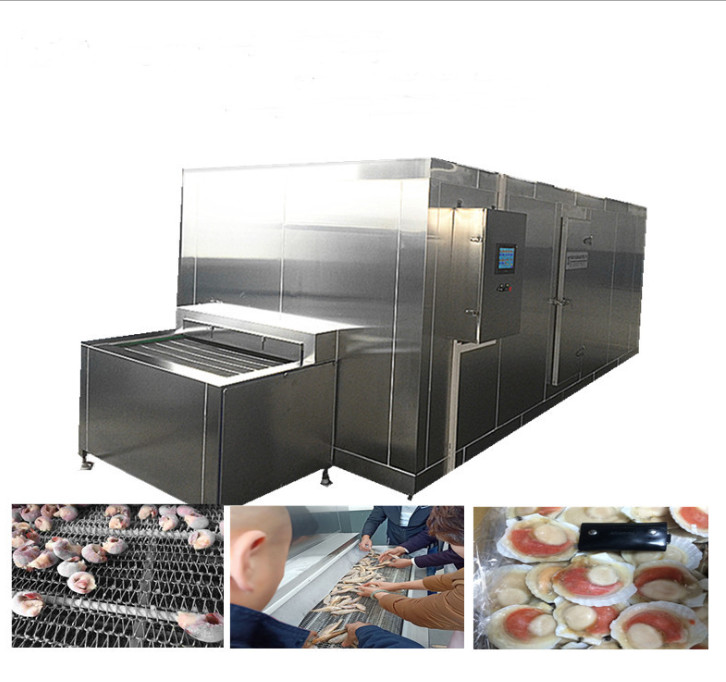

500kg/Hour Freon Compressor Mesh Belt IQF Freezing Machine 0

Scheme Design:

Form of placing: after placing on the net belt

Internal operating temperature of the equipment: 0℃~-70℃

Feed temperature of frozen products: ≤20℃ (central temperature)

Discharging temperature of frozen products: -18℃ (central temperature)

Freeze time: adjustable for 6-60 minutes

Heat transfer form: side blow heat exchange

Energy saving measures: the inlet and outlet of the material is equipped with air guide plate to avoid

the cold air blowing

directly out of the insulation layer, which can effectively reduce the cold loss. In addition, separate buffer

room can be set.

Features and Performance:1. Mesh belt drive: the speed of mesh belt is adjusted stepless by imported inverter, and the freezing
time is adjustable from 6-60 minutes, which can adapt to the processing of various frozen products.

2. Ice scraping device for feeding belt to reduce damage to steel belt caused by ice and foreign matter.

3. Compressor refrigeration, no freon, green protection, odor, antibacterial, energy saving, low operating costs.

4. Unique Tong efficiency ventilation device, the reasonable air distribution, uniform air distribution, make
the material fully exposed to the strong cold wind, high freezing efficiency.

5. Food transport network, transport speed can be flexible according to different products, suitable for a variety
of frozen food processing.

6. According to the production requirements can choose single, double net belt combination.

7. The e belt shall be tightened and adjusted to ensure the smooth and long running of the food conveyor belt.

8. The storage body is made of rigid polyurethane foam with good insulation performance. The inner and outer
cover and the inner and outer support of the storage body are made of stainless steel, which is easy to clean and
meets the requirements of HACCP for food hygiene.

9. The control system has two automatic and manual cooling modes, which can be selected according to different
production needs.

10. With continuous production line, safe and durable, easy to operate, long service life.

11. Adopt water to flush frost way, safeguard clean sanitation.

12. The equipment can be customized according to the needs of users.
The IQF tunnel quick freezer specification


			No.
			Model
			Capacity
			Power
			/


			1
			FD-100
			100kg/h
			18kw
			/


			2
			FD-200
			200kg/h
			20kw
			/


			3
			FD-300
			300kg/h
			25kw
			/


			4
			FD-500
			500kg/h
			30kw
			/


			5
			FD-1000
			1000kg/h
			32kw
			/


			6
			FD-1500
			1500kg/h
			35kw
			/


			7
			FD-2000
			2000kg/h
			38kw
			/


			8
			FD-2500
			2500kg/h
			40kw
			/


			9
			FD-3000
			3000kg/h
			40kw
			/


			10
			FD-4000
			4000kg/h
			40kw
			/


			11
			FD-5000
			5000kg/h
			40kw


Packaging & Shipping
Our packaging and shipping

1.Pacaking:

All machines which need pacaged will be covered by film then put into the export standard
wooden case, use the cystosepiment to prent breaking on ship.

The wooden case will be fixed inside the container tightly by the rope.

Export standard wooden case will be palleted for easy unloading for customers.

2.Shippping

We select the direct ship for sending the machines to customers within shortest time as we can.
And all main BL for ensuring the safety of the machines.

We update the shipping information to customer in time.

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Fude
Certification:	CE,ISO,UL
Model Number:	FD-F-100-1000
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	1000usd-50000usd
Packaging Details:	wooden case packages
Delivery Time:	7
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000
