400V 100kw 120kw 1500RPM Brushless Diesel Generator

Product Details:
Place of Origin: China
Brand Name: Fude
Certification: CE, ISO,3C
Model Number: FD_Weichai-D500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden case packages
Delivery Time: 8
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000

Detail Information

Excitation Mode:: Brushless Self-excitation Diesel Generator Speed:: 1500RPM/1800RPM
Type:: Silent(super Silent)or Open Diesel Generator Fuel Consumption:: 84.000 Kg./hr Diesel Generator
Governing:: Electronic Speed Regulation Diesel Generator Power Efficiency:: 0.8(Lag) Diesel Generator
Frequency:: 50HZ/60HZ Rated Current:: 720A
Warranty: 12monthes Cooling System: Water Cooling System Or Wind Cooling
Rated Voltage: 400V Certificate: CE ISO9001/ISO14001
Fuel Tank: 6-8hours Running Time Alternator: BC184H(Optional)
High Light:

1500RPM Brushless Diesel Generator


120kw Brushless Diesel Generator


400V Brushless Diesel Generator

Product Description

High Quality!100kw 120kw Volvo Industrial Electric Power Diesel Generator



FUDE Power System is committed to the R&D and manufacturing of Diesel Generator, Screw Air Compressor, Diesel Pump, Lighting Tower, Welding Generator and related control system and accessories. As a high-tech enterprise, we obtained National Industrial Production Permit in fabricating compressors.


Meanwhile, we are a comprehensive solution provider for our customers in different fields, both power solution and air compressed solution. Combining our worldwide after-sales service, our product is widely used in different industries to cater to different customer demand.

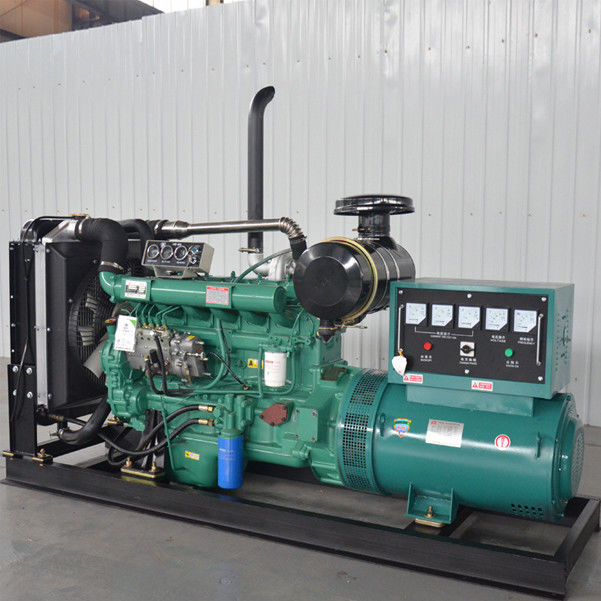

400V 100kw 120kw 1500RPM Brushless Diesel Generator 0

Generating set
Prime power 120KW/150KVA
Standby power 125KW/156.25KVA
Rated rotate speed 1500 RPM
Rated frequency 50 Hz
Number of phase 3
Rated voltage 400V
Noise dB(A) @7m 70
Outline dimension (mm) 2520*1000*1670

Model of generator KHI-120-1-4
Voltage regulation rate ≤±1%
Voltage change rate (steady state) ≤±1%
Frequency regulation rate ≤±5%
Frequency change rate (steady state) ≤±0.5%
The transient voltage regulation rate ≤15%
Transient frequency modulation rate ≤5%
Frequency stability time ≤3S
Voltage stability time ≤3S
Starting the success rate 100%

Model of engine BF6M1013EC
Number of cylinders 6
Speed governor Mechanical control of motor speed
Cooling system Water circulation cooling
Oil capacity 20
Fuel consumption ≤218
AC charger DC24V


Features of Generator

  1. Complete 50kw diesel generator adopt Weichai engine R4105ZD model.This type can be used as prime work or backup use.Adopt UK Ricardo technology produced in China.Easy operation,simple maintenance and spare parts available all times.
  2. Complete generator can be used for farm ,construction area,fix area etc as prime work use ,also can used for school,home,factory, hospital,government work area as back up use etc.
  3. Alternator adopt 100% copper wires type brush-less model.100% power output,easy maintenance and reliable quality.
  4. Complete generator with smart controller with protection system.make Full control of speed,temperate,loading power etc.Make sure generator keep good running conditions durinig work time,and offer good protection avoid damage.
  5. Generator adopt 24V battery start including no-maintenance start battery.
  6. Each generator have been tested two times before delivery.
  7. The connection of raditor,generator with under frame, use highly rubber damping block,reduce the vibration during genset moving or running time,make good protect.
  8. Raditor, including Double vents, exhaust heat to achieve high efficiency.
  9. Experience, all our engineers have years experience in engines and power plant, make it our generators stable and easy operational.
  10. Service. Our company do service for the genset during its life time,each two or three monthes will make the contact for user, check the generator conditions, offer support of technology or desgin or other support for your project etc.
  11. Spare parts, for complete sets, all spare parts avaible all the time, whatever which time you need them, we can directly send it without delay,and make you can find us all time.
  12. Delivery mostly we have more than 100 hundreds sets in stock for sale, make it fast delivery after the payment,no need wait long time.
  13. Warranty: All complete generators we offer 2 year warranty, spare parts avaiable at any time.
  14. With super tempered base, seamless welding and baking process. Anti-corrosion, anti-weathering, durable.
  15. Each set with maintenance book,spare part list and generator operation book etc.
Ricardo Generators introducing British Ricardo technology, bear the features of compact structure, convenient operation, stable operation, low fuel consumption, low emission and low noise. Each performance indicator has reached National standard JB/T8981-1999, also meeting international standard IEC34-1. The product is widely used in numerous industries.

400V 100kw 120kw 1500RPM Brushless Diesel Generator 1

Our customers include Africa, Southeast Asia, West Asia, South America and other emerging developing countries. We are committed to providing our customers with better quality, better price and good products, and creating more value for our customers

1.We develops independently with 4100 series, British ricardo R4105 and R6105 series, the 6113 series and steel 6126 series diesel engines.
2.Combined the advantages of domestic and foreign advanced diesel engines , improved the fuel injection system, intake and exhaust system, the cooling system to suit the seeds of various generating sets.
3.High power, low fuel consumption, easy to start, equipped with air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without brush as optional parts.
5.The generator can be equipped in factory, school, hospital, farm,etc.


1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global brand engine which with the global warranty service. And the alterntors Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
