Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Fude |
| Certification: | CE,FDA,UL,ISO9001 |
| Model Number: | FD-230B |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 10000usd to 80000usd |
| Packaging Details: | wooden case packing |
| Delivery Time: | 10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 |
|
Detail Information |
|||
| Model: | FD-230B | Material: | 304SS |
|---|---|---|---|
| Vacuum Pump: | Germany BUSCH RA/3.4kw Or ZDV100/160C/3.4kw/4.5kw | Pneumatic Components: | Japan SMC Or Taiwan Airtac |
| Driving Mode: | Mechanical Drive | Measurement Method: | Mechannical Propulsion,earth Gravvity,monomer Count |
| Applicable Material: | Beef,chicken.sausages,mustard Heads,etc. | Filling Range: | 100g-1000g |
| Workflow: | 1.bag Feeding2.code Printing3.open The Bag4.material Feeding One5.material Feeding Two6.bag Pulling7.passing To Vacuum Chambers8.cycle | Heat Sealing: | Instant Heat Sealing And Instant Cooling,ensure Nice Sealing Appearance |
| Speed: | 35bags To 60bags/min | Bag Size: | Length 160mm-310mm Width 160mm-230mm |
| Total Power: | Host Power 12kw | Drive Power: | 3P/380V/50HZ |
| Machine Dimension: | 2460mm*2100mm*1600mm | Weight: | 3000kg |
| Use Of Environment: | 10-40 Degree | ||
| High Light: | 500g Food Packing Machine,40 bags/min Food Packing Machine,380V vacuum packaging machine |
||
Product Description

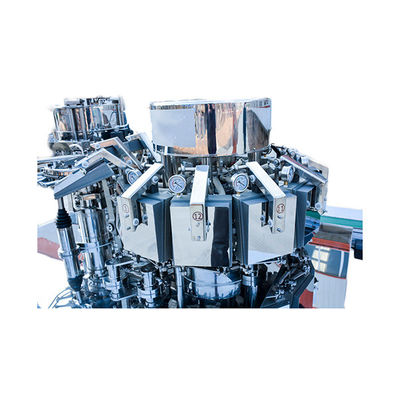

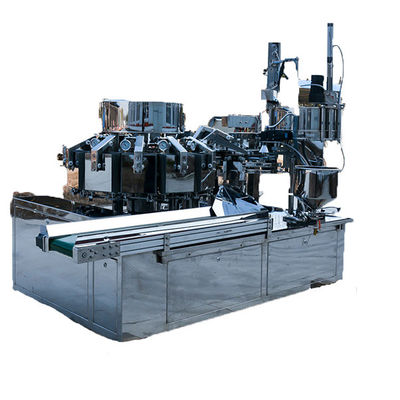

Fully automatic rotary vacuum packaging machine
High Quality Automatic Rotary Vacuum Packing Machine With Automatic Weighing
Machine Features:
1. Using high technology such as micro computer display and graphic touch panel,
the machine can be easily operated and maintained.
2. Being high-performance and high-durability, the filling machine rotates intermittently
to fill the product easily while vacuum machine rotates continuously to enable smooth
running
3. The width of grippers in filling machine can be adjusted at once by a motor while those
in the vacuum chambers are needn't to adjust. The main section of machine are made of
stainless steel for excellent durability and hygiene.
4. All filling zone and vacuum chambers are washable.
5. Weighing machine and liquid&paste doser can be combined with this machine Status
in the vacuum chamber can be checked through the transparent plastic vacuum shell lids.
