China Automatic Food Making Machine manufacturer

30kw 600L Paste Making Boiling Jacketed Kettle Cooker

Product Details:
Place of Origin: China
Brand Name: Fude
Certification: CE,UL,ISO9001,FDA
Model Number: FD-J-100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000usd 10000usd
Packaging Details: wooden case packages
Delivery Time: 5
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000

Detail Information

Applicable: Food & Beverage Factory, Restaurant, Home Use Condition: New
Voltage: 220V/380V Weight: 300kg
Warranty: 2years Material: 304SS
Heating Power: Electric,gas,steam Motor Power: 2.2kw+1.5kw
Discharge Way: Automatic Hydraulic Dimension: 1900*1500*1600 Mm
Volume: 100l To 1000L Capacity: 60kg -200kg/hour
High Light:

30kw Jacketed Kettle Cooker


600L Jacketed Kettle Cooker


600L Boiling Jacketed Kettle

Product Description

Automatic cooking machine planetary mixer

boiling jacket kettle for vending for making various paste



Product introduction:

1. The sandwich pot is also known as a steam pot, a cooking pot, and a sandwich steam pot.

2. It usually consists of a pot body and legs. The pot body is a two-layer structure composed of a spherical body inside and outside.

3. The sandwich pot is divided into structure according to the structure: tiltable sandwich pot, vertical sandwich pot, horizontal horizontal sandwich pot.

4. The sandwich pot is divided into heating method: electric heating sandwich pot, steam heating sandwich pot, gas heating sandwich pot.

5. The sandwich pot is divided according to the process requirements: no stirring sandwich pot, planetary stirring sandwich pot, scraping bottom stirring sandwich pot.


Main Technical Parameters of 500l big equipment pasta sauce cooking machine for instant noodle chocolate melting bowl 50l pot still sugar melter :

Model Volume Electric Heating Power Mortar Power Heating Area Pot Inner Diameter Weight Dimension(cm)
JC-50 50L 15kw 0.75kw 0.53m2 500mm 75kg 80*80*120
JC-100 100L 15kw 1.1kw 0.87m2 700mm 90kg 90*90*120
JC-200 200L 15kw 1.1kw 1.23m2 800mm 120kg 100*100*120
JC-500 500L 27kw 2.2kw 2.21m2 1100mm 235kg 140*140*150
JC-600 600L 30kw 2.2kw 2.43m2 1200mm 250kg 150*150*150
JC-800 800L 30kw 3kw 2.87m2 1300mm 305kg 170*170*150
JC-1000 1000L 30kw 3kw 3.09m2 1400mm 360kg 190*190*170


Fish and shrimp pre-cooking equipment


1. Automatic and intelligent control, sequential and cycle operation

With closed circuit automatic cooking at regular time, cooking time and temperature are automatically set and controlled. Standardized operation improves production efficiency and guarantees product quality

2. New technical structure reduces energy consumption

Cooking box and flavoring juice can are equipped with polyurethane foam to keep warm, with rice rib type jacket to heat, which makes it possible to the temperature automatically and regularly, to reduce steam consumption, and achieves energy conservation and economic efficiency improvement.

3. Automatic flavoring juice recycling saves material

Flavoring juice is timely recycled for cooking to ensure the product is soaked uniformly, to reduce labor intensity, it is recoverable for a long time, which reduces waste, saves raw material, and protects environment

4. Integrated structure improves working environment

It is completely and automatically done by one machine to boil, to distribute flavoring juice, to cycle, to control temperature, to recycle flavors and realizes multifunctional using and fully automatic standard operation.

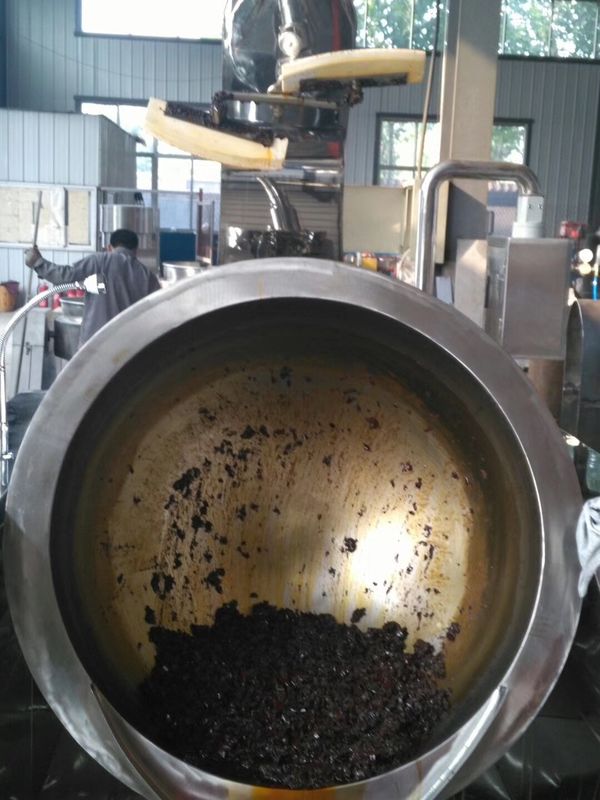

30kw 600L Paste Making Boiling Jacketed Kettle Cooker 0


30kw 600L Paste Making Boiling Jacketed Kettle Cooker 1


30kw 600L Paste Making Boiling Jacketed Kettle Cooker 2
