304 Stainless Steel Belt IQF Tunnel Food Freezing Machine

Product Details:
Place of Origin: China
Brand Name: Fude
Certification: CE,ISO,UL
Model Number: FD-F-100-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000usd-50000usd
Packaging Details: wooden case packages
Delivery Time: 7
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000

Detail Information

Model No: FD-100-1000 Weight: 5000kg
Product Name:: Tunnel Quick Freezer Material: 304SS
Application:: Food Quick Frozen Machine Freezing Time:: 10-50 Minute
Warranty: 1year Dimension(L*W*H): 7000mm*1500mm*2100mm
Voltage: 220v/380v Function: Quick Freezing Food
Capacity:: 100kg/hour Freezer Type: Tunnel Quick Freezer
After-sale: Engineers Available To Service Machinery Overseas
High Light:

IQF Food Freezing Machine


304SS Food Freezing Machine


304SS IQF Tunnel Freezer

Product Description

Fruits/Vegetables/Meat/Fish/Seafood Cryogenic Quick Freezing Commercial Blast Liquid Nitrogen IQF Tunnel Freezer

Food Processing Machine Stainless Steel Belt IQF Tunnel Freezer

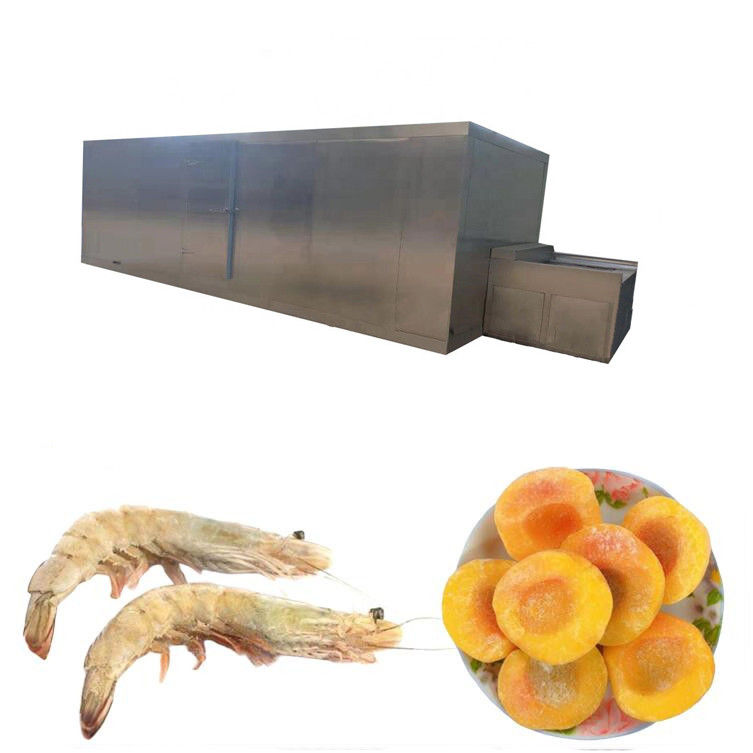

304 Stainless Steel Belt IQF Tunnel Food Freezing Machine 0


The structure of tunnel freezer is simple and reliable. It is a line from products inlet to products outlet. Because of the limitation of its structure, the length of tunnel freezer is much longer than spiral freezer with the same output capacity.


Its advantages (comparing with spiral freezer with same output capacity):

(1) Simple structure;

(2) The inlet device and outlet device are in the same height, while single drum spiral freezer must be one is lower and the other is higher;

(3) Lower price;


Its applications:

Tunnel freezers are mostly used for flour food freezing, fruits & vegetables freezing, meat freezing, seafood freezing and prepared food freezing.


Its structure:

(1) Stainless steel conveyor belt;

(2) Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;

(3) Door is equipped with frame heating device;

(4) Aluminum evaporators, different fin pitches;

(5) Axial fans: stainless steel air box, aluminum blades;

(6) Whole welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through many stainless steel draining pipes;

(7) The inlet device, outlet device and all structure parts are made of stainless steel;

(8) Control panel is made of stainless steel;

(9) Schneider or Siemens electric components;

(10)SEW speed reducer.


Technical Parameters:

Model: TF Series Output Installed Power Refrigeration Consumption Dimension L*W*H Belt Width
TF100 100kg/h 2.25kw 15kw 7.0*1.5*2.1m 1000mm
TF150 150kg/h 2.95kw 21.5kw 8.0*1.8*2.2m 1300mm
TF300 300kg/h 6.5kw 43.5kw 11.2*2.3*2.3m 1800mm
TF500 500kg/h 10.3kw 75kw 13.5*3.0*2.5m 2500mm
TF1000 1000kg/h 19.8kw 142kw 22.9*3.0*2.5m 2500mm
TF1500 1500kg/h 28.6kw 225kw 26.4*3.5*2.5m 3000mm
304 Stainless Steel Belt IQF Tunnel Food Freezing Machine 1

Features and Performance:

1. Mesh belt drive: the speed of mesh belt is adjusted stepless by imported inverter, and the freezing
time is adjustable from 6-60 minutes, which can adapt to the processing of various frozen products.
2. Ice scraping device for feeding belt to reduce damage to steel belt caused by ice and foreign matter.
3. Compressor refrigeration, no freon, green protection, odor, antibacterial, energy saving, low operating costs.
4. Unique Tong efficiency ventilation device, the reasonable air distribution, uniform air distribution, make
the material fully exposed to the strong cold wind, high freezing efficiency.
5. Food transport network, transport speed can be flexible according to different products, suitable for a variety
of frozen food processing.
6. According to the production requirements can choose single, double net belt combination.
7. The e belt shall be tightened and adjusted to ensure the smooth and long running of the food conveyor belt.
8. The storage body is made of rigid polyurethane foam with good insulation performance. The inner and outer
cover and the inner and outer support of the storage body are made of stainless steel, which is easy to clean and
meets the requirements of HACCP for food hygiene.
9. The control system has two automatic and manual cooling modes, which can be selected according to different
production needs.
10. With continuous production line, safe and durable, easy to operate, long service life.
11. Adopt water to flush frost way, safeguard clean sanitation.
12. The equipment can be customized according to the needs of users.

304 Stainless Steel Belt IQF Tunnel Food Freezing Machine 2

Packaging & Shipping

Our packaging and shipping
All machines which need pacaged will be covered by film then put into the export standard

wooden case, use the cystosepiment to prent breaking on ship.
The wooden case will be fixed inside the container tightly by the rope.
Export standard wooden case will be palleted for easy unloading for customers.
We select the direct ship for sending the machines to customers within shortest time as we can.

And all main BL for ensuring the safety of the machines.
We update the shipping information to customer in time.
