300kg/H Fruit Drying Grading Vegetable Washing Machine

Product Details:
Place of Origin: China
Brand Name: Fude
Certification: CE,ISO,UL,CCC
Model Number: FD-V-600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000usd -10000usd
Packaging Details: wooden case
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000

Detail Information

Name: Fruits Drying Processing Machine Fuction: Washing
Power: 10.75kw Voltage: 380v
Weight: 400kg Application: Dates, Fruits,vegetable
Capacity: 300kg/h Material: 304stainless Steel
High Light:

380v Vegetable Washing Machine

,

300kg/h Vegetable Washing Machine

,

SS304 Fruit Drying Machine

Product Description

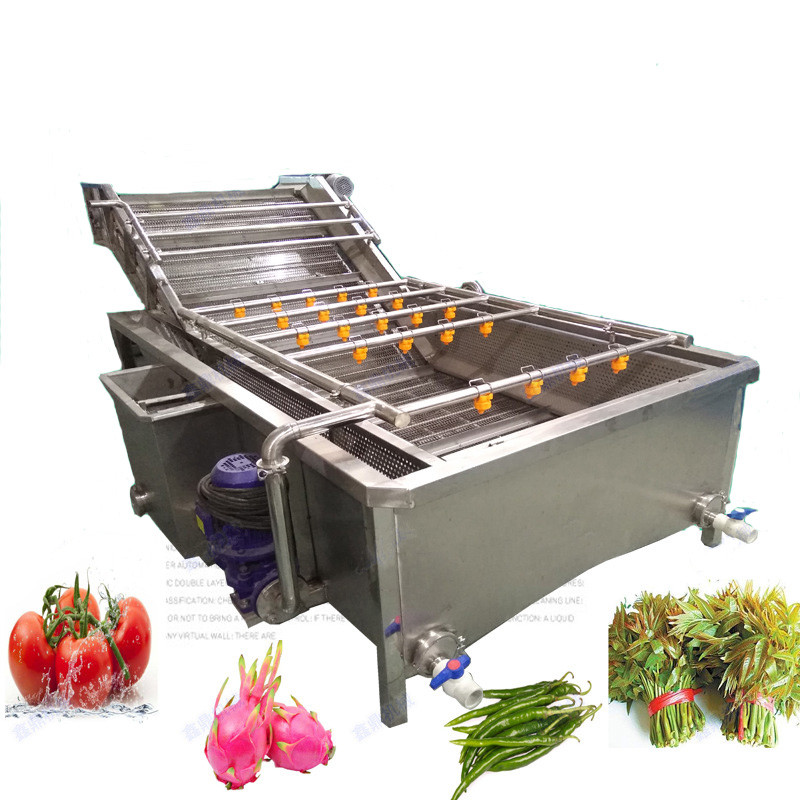

Vegetables and fruits washing machine

Fruit Vegetable Processing Machines Washing Drying and Grading Machine





Introduction



Air Bubble washing machine using a variety of types to clean fruits and vegetables several times

, not only to completely wash vegetables and fruits of the soil surface, but also to wash vegetables

and fruits surface pesticide medicine,Bubble washing machine: Suitable for fruit and vegetable

cleaning materials, mainly for vegetables, fruit cleaning, such as cabbage, spinach, celery, dates,

strawberries, apples, peaches, etc. Features: The machine uses with arc angle with the cone bottom

design, easy to clean, with a high-pressure spray, better cleaning effect, wider range



Model Power Weight Dimension Capacity
TZ-300 1.87kw/380v 180kg 3000x1080x1500mm 500kg/h
TZ-400 2.57kw/380v 220kg 4130x1010x1550mm 1500-2000kg/h
TZ-500 3.37kw/380v 260kg 5200x1010x1550mm 2500-3000kg/h



1. There are several types of mesh belts. What is the difference? Mesh belt, chain plate bubble
cleaner is suitable for smaller particles, or special requirements, the chain plate is punched with
a small hole in the plane, which will not clip the material into the mesh belt. The sediment scum
eluting from the surface of the material directly falls into the sewer with the water flow.

2. What is the mesh of the Water circulation filter? 100 mesh

3. How is the machine works? The high-pressure water flow and the bubble generating device
impact the surface of the object to be cleaned, and the energy generated by the bubble bursting
when in contact with the object acts as an impact and brush on the surface of the object to be cleaned,
so that the material is cleaned.

4. Take LG-XQ3000 as an example, how much water is released? (3100-700)*400*900*1000=864kg, 700 is the lifting spray part, 400 is the groove depth, 900mm is the groove width, and 1000 is the density conversion of water;

5. Consumable parts? Nozzle, switch button

6. How to release water into the machine? Put the water
pipe directly into the water tank.

7. what is the speed of bubble cleaner mesh belt (meters per minute),
0--12 m / min.

8. how is the bubble generated? The air bubbles are generated by the bubble generating
device, that is, the air is sent into the cleaning tank by the air blower.

9. Can i increase the ozone device?
Yes, add 3,500.
